Wastewater/Activity/PacpInspection/1.0May 3, 2017, 06:46 AM
B 0244_B 0243 _02052017_234619.mp4
- Date
- 05/02/2017
- W/O
- 635430
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00077
- PipeID
- P08713
- Time
- 11:46 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4441
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- ROSEMEAD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_635430_TV02096_MAY2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0244
- Downstream MH
- B 0243
- Dir. of Survey
- Downstream
- Length Surveyed
- 372.7 ft.
- Total Length
- 372.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2[00
- O&M Rating
- 284
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 284
Observation photos (2)

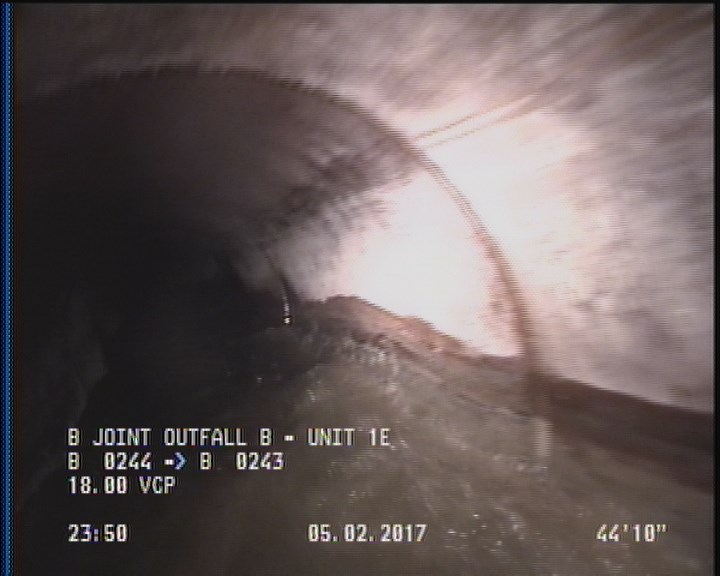

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

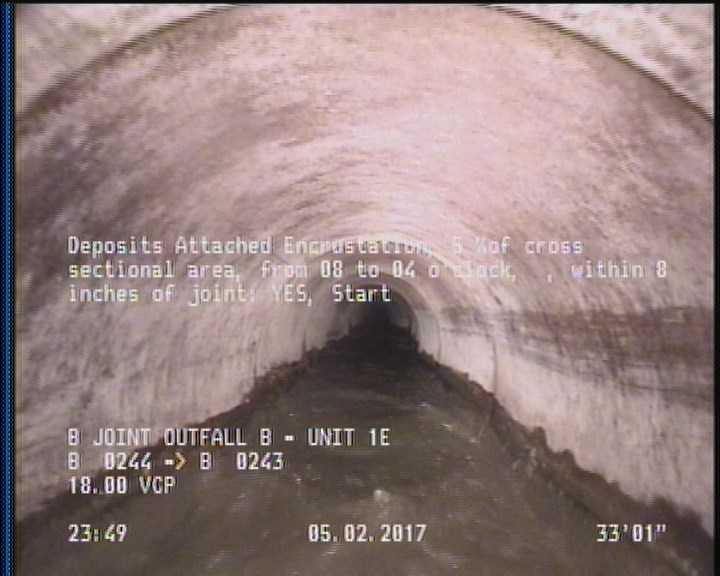

31.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 372.7 | DAGS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | B 0244 |
| 372.7 | DAE | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 372.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 372.7 | AMH | B 0243 |
| 31.6 | DAE | — |
Properties (5)
- additional_info
- SC345214
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-02T23:46:03-07:00
- sewer_category
- Gravity
