Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 09:56 AM
Date
04/18/2017
W/O
630147
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00629
PipeID
P12476
Time
2:56 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4469
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
ARCADIA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_630147_TV15085_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
15 0547
Downstream MH
15 0546
Dir. of Survey
Downstream
Length Surveyed
347 ft.
Total Length
347 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1B00
O&M Rating
14
Overall Index
1
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 15 0547 to 15 0546
MH: 15 0547MH: 15 0546downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 05470 ft. MWL - Water Level, 10 %of cross sectional area64.6 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES103.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES124.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start182.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish233.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"302.6 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"347 ft. AMH - Downstream Manhole, Survey Ends - 15 0546

Observation photos (3)

  • Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES

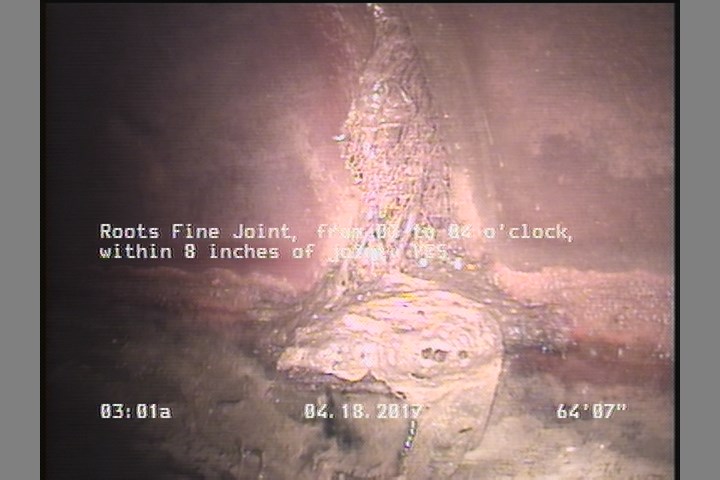

    64.6 ft. - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

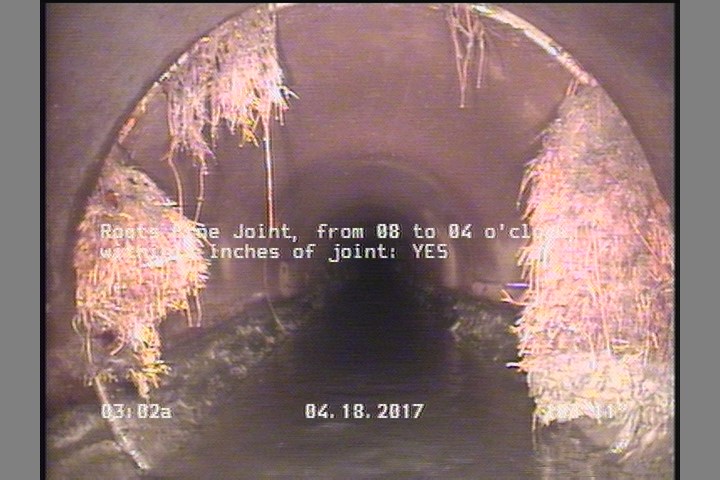

    103.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

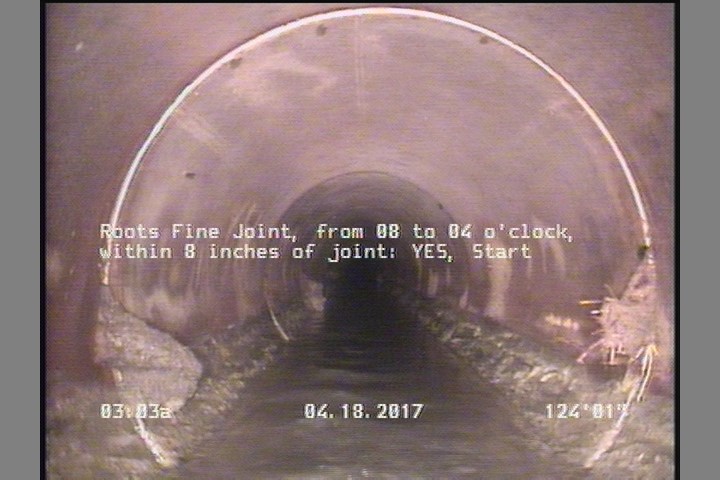

    124.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P12476Work order 630147

Observations (11)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
347AMH15 0546
233.1TB—
124.1RFJ—
302.6TB—
103.9RFJ—
182.3RFJ—
0AMH15 0547
64.6RFJ—
0MWL—

Properties (5)

additional_info
SC345178
custom_field_two
4
customer
LACSD
datetime
2017-04-18T02:56:53-07:00
sewer_category
Gravity
