Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 08:19 AM
Date
04/19/2017
W/O
630147
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00629
PipeID
P12464
Time
1:19 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4470
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
ARCADIA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_630147_TV15085_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0535
Downstream MH
15 0534
Dir. of Survey
Downstream
Length Surveyed
290.8 ft.
Total Length
290.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 15 0535 to 15 0534
MH: 15 0535MH: 15 0534downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 053542 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"102.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"286.7 ft. TS - Tap Saddle, at 10 o'clock, -, within 8 inches of joint: NO, 6"290.8 ft. AMH - Downstream Manhole, Survey Ends - 15 0534

Observation photos (1)

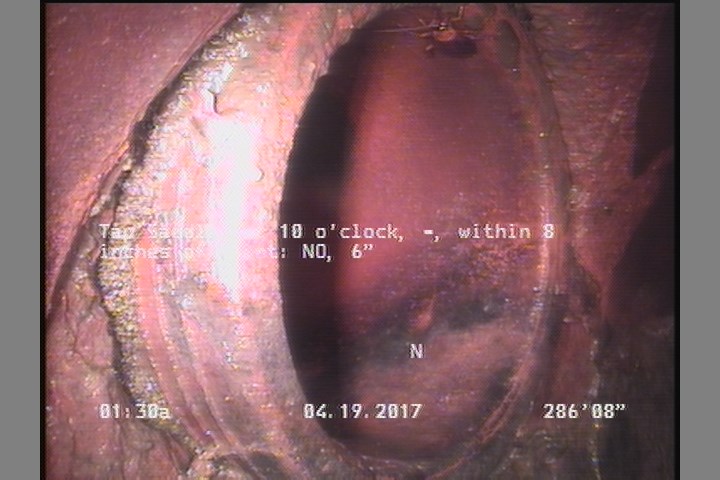

  • Tap Saddle, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    286.7 ft. - Tap Saddle, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P12464Work order 630147

Observations (8)

DistanceCodeObservation
286.7TS—
0MWL—
0MWM—
102.8TB—
290.8AMH15 0534
0AMH15 0535
42TB—
139.5TB—

Properties (5)

additional_info
SC345179
custom_field_two
4
customer
LACSD
datetime
2017-04-19T01:19:16-07:00
sewer_category
Gravity
