Wastewater/Activity/PacpInspection/1.0Apr 17, 2017, 11:11 AM
- Date
- 04/17/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12494
- Time
- 4:11 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4468
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0564
- Downstream MH
- 15 0565
- Dir. of Survey
- Upstream
- Length Surveyed
- 353.4 ft.
- Total Length
- 353.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 2213
- O&M Rating
- 7
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

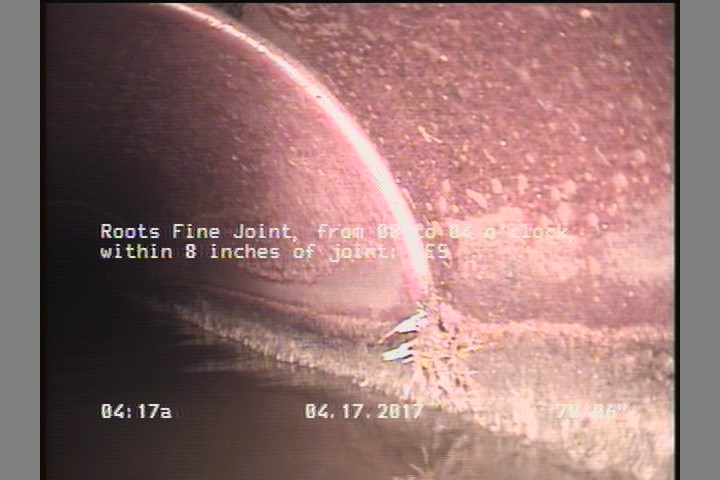

70.5 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

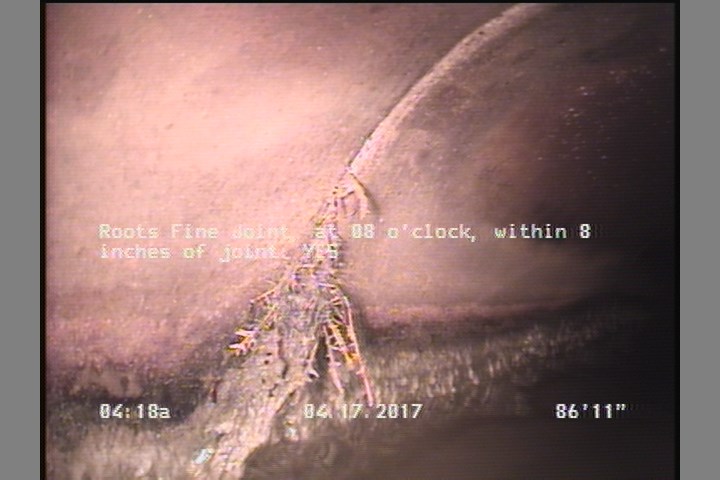

86.3 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

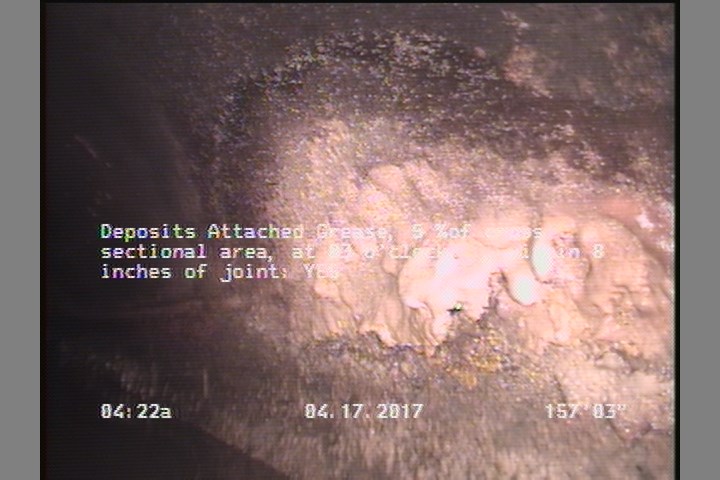

157.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 251.1 | TB | — |
| 300.2 | TB | — |
| 177.6 | TB | — |
| 107.2 | TB | — |
| 82.2 | RFJ | — |
| 353.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 105 | TB | — |
| 70.5 | RFJ | — |
| 157.2 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 174.6 | TB | — |
| 0 | MWM | — |
| 353.4 | AMH | 15 0565 |
| 86.3 | RFJ | — |
| 0 | AMH | 15 0564 |
| 348.8 | DAGS | — |
Properties (5)
- additional_info
- SC345177
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-17T04:11:17-07:00
- sewer_category
- Gravity
