Wastewater/Activity/PacpInspection/1.0Apr 14, 2017, 10:34 AM
- Date
- 04/14/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12504
- Time
- 3:34 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4467
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0574
- Downstream MH
- 15 0575
- Dir. of Survey
- Upstream
- Length Surveyed
- 272.8 ft.
- Total Length
- 272.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 1A00
- O&M Rating
- 11
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

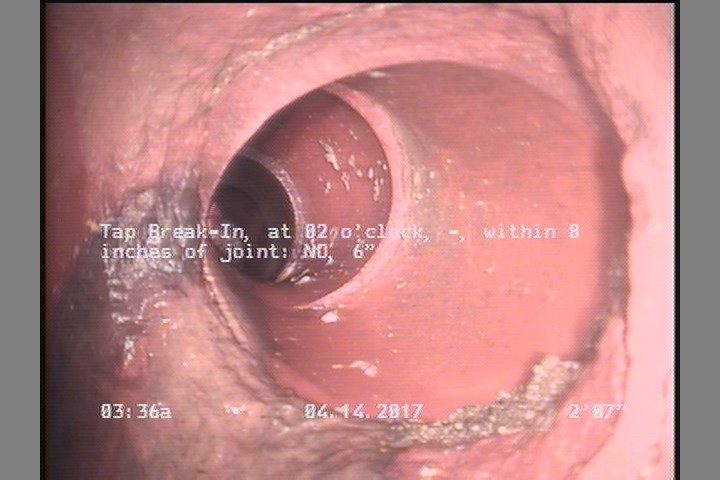

2.6 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

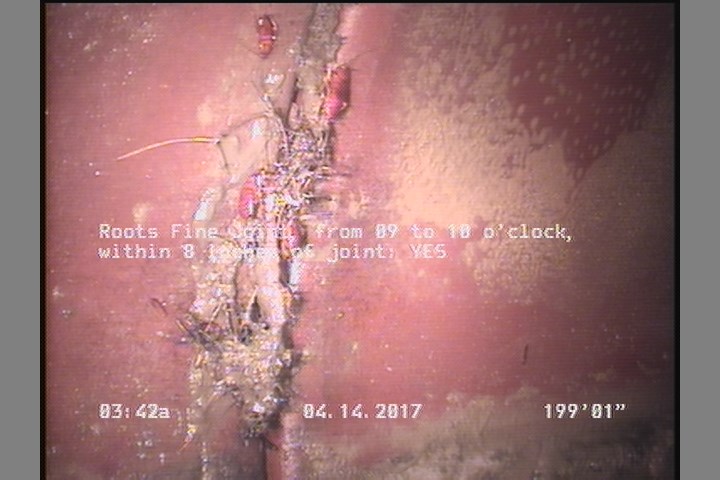

199.1 ft. - Roots Fine Joint, from 09 to 10 o'clock, within 8 inches of joint: YES

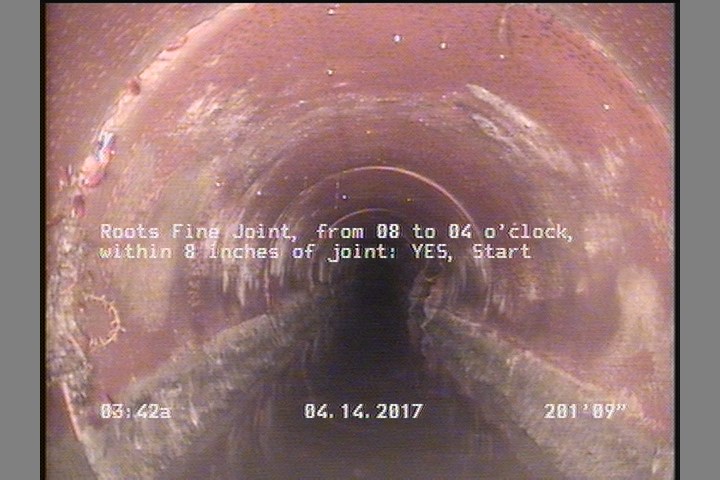

201.7 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 252.5 | RFJ | — |
| 0 | AMH | 15 0574 |
| 2.6 | TB | — |
| 201.7 | RFJ | — |
| 272.8 | AMH | 15 0575 |
| 199.1 | RFJ | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345176
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-14T03:34:35-07:00
- sewer_category
- Gravity
