Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 08:29 AM
- Date
- 04/20/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12446
- Time
- 1:29 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4471
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0519
- Downstream MH
- 15 0518
- Dir. of Survey
- Downstream
- Length Surveyed
- 158.2 ft.
- Total Length
- 158.2 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

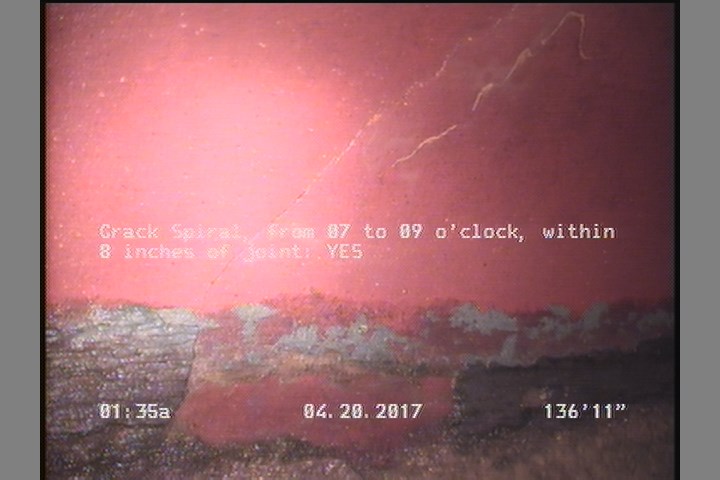

136.9 ft. - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES

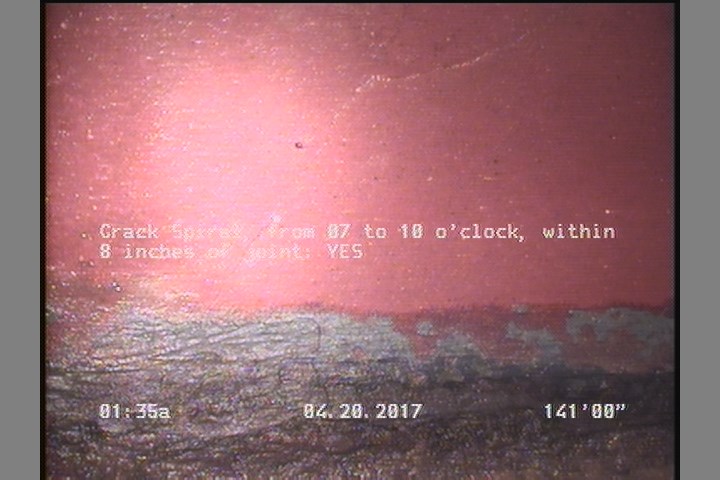

141 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 15 0519 |
| 149.9 | TB | — |
| 136.9 | CS | — |
| 158.2 | AMH | 15 0518 |
| 0 | MWM | — |
| 141 | CS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 158.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC345180
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-20T01:29:32-07:00
- sewer_category
- Gravity
