Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 26, 2017, 06:11 AM

  • 15 0777_15 0776 _25052017_231115.mp4

Date
05/25/2017
W/O
619148
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00593
PipeID
P12978
Time
11:11 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4563
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
WO_619148_TV15202_MAY2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0777
Downstream MH
15 0776
Dir. of Survey
Downstream
Length Surveyed
223 ft.
Total Length
223 ft.
Structural Index
3
Structural Quick
3H2G
Structural Rating
216
O&M Index
2
O&M Quick
412H
O&M Rating
92
Overall Index
2
Overall Quick
—
Overall Rating
308
Pipe schematic from manhole 15 0777 to 15 0776
MH: 15 0777MH: 15 0776downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 07770 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start12 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start60.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"160.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"221 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish221 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish221 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish223 ft. MGO - General Observation - COCKROACHES IN MANHOLE223 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK223 ft. AMH - Downstream Manhole, Survey Ends - 15 0776

Observation photos (3)

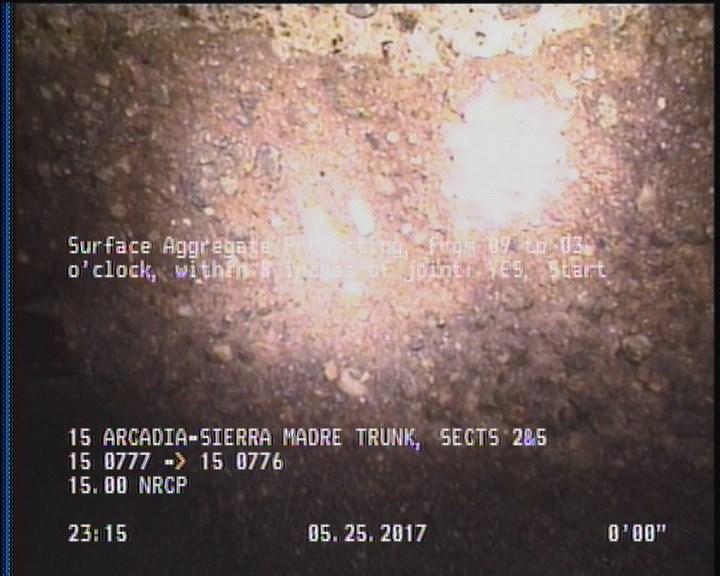

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

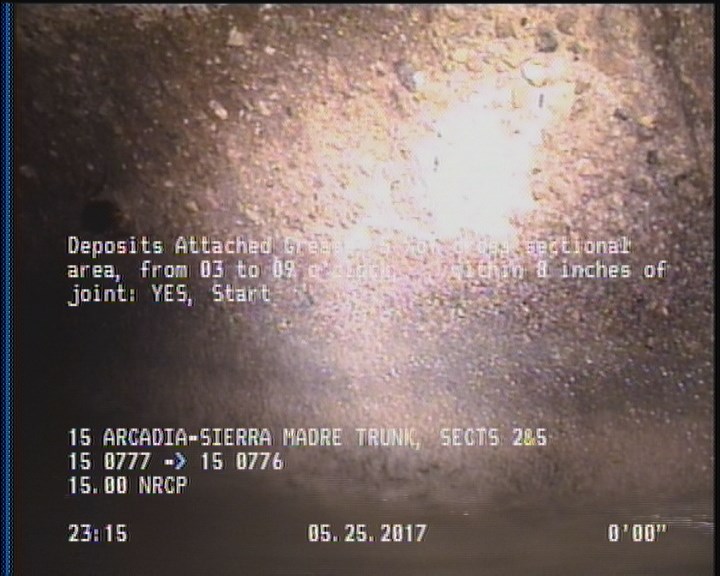

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

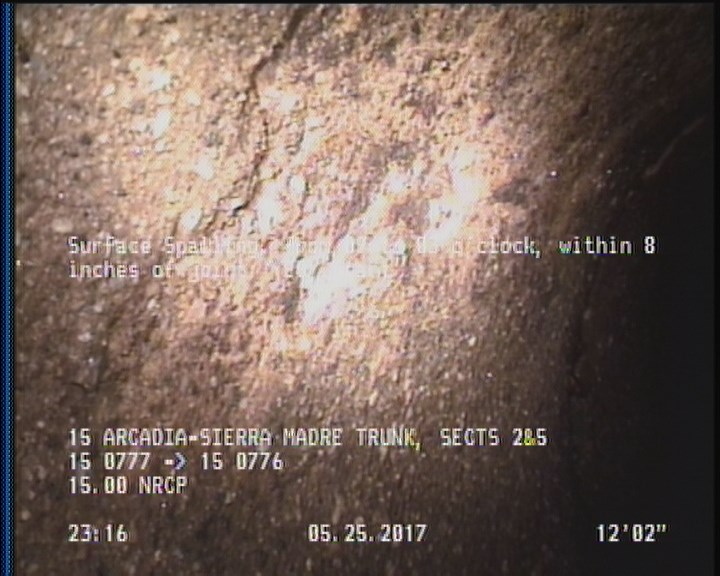

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    12 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P12978Work order 619148

Observations (20)

DistanceCodeObservation
160.8TF—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2SAP—
12SSS—
0AMH15 0777
0MWM—
221SAP—
223MGOCOCKROACHES IN MANHOLE
158.3TFA—
0MWL—
109.3TFA—
106.2TFA—
2DAGS—
221DAGS—
221SSS—
223MGOACTIVE CONNECTION AT MH 3 O'CLOCK
60.1TFC—
223AMH15 0776
0MGOCOCKROACHES IN MANHOLE
63.5TF—

Properties (5)

additional_info
SC345239
custom_field_two
2
customer
LACSD
datetime
2017-05-25T23:11:06-07:00
sewer_category
Gravity
