Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 24, 2017, 05:50 AM

  • 15 0767_15 0766 _23052017_225540.mp4

Date
05/23/2017
W/O
619148
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00593
PipeID
P12968
Time
10:50 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4561
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
WO_619148_TV15202_MAY2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0767
Downstream MH
15 0766
Dir. of Survey
Downstream
Length Surveyed
404.2 ft.
Total Length
404.2 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
240
O&M Index
2
O&M Quick
412O
O&M Rating
164
Overall Index
3
Overall Quick
—
Overall Rating
404
Pipe schematic from manhole 15 0767 to 15 0766
MH: 15 0767MH: 15 0766downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 07672 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start113 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"114.1 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"116.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"117.1 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"168.1 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"170.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"290 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"326.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"330 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"402.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish402.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish404.2 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK404.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0766404.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

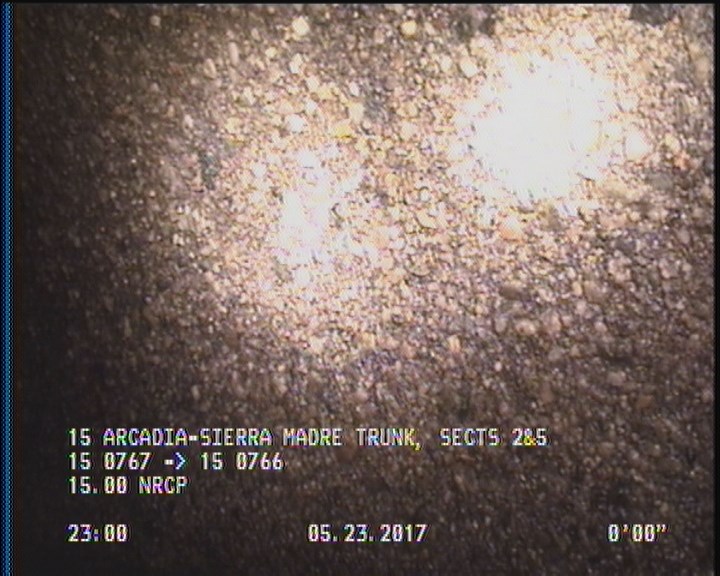

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P12968Work order 619148

Observations (21)

DistanceCodeObservation
116.5TFC—
117.1TBA—
404.2MGOACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
170.9TF—
168.1TFA—
0MGOCOCKROACHES IN MANHOLE
402.3DAGS—
114.1TBA—
404.2AMH15 0766
326.9TF—
2DAGS—
113TFC—
0MGOACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
330TFA—
290TF—
0MWM—
2SAP—
402.3SAP—
0MWL—
0AMH15 0767
404.2MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC45237
custom_field_two
3
customer
LACSD
datetime
2017-05-23T22:50:16-07:00
sewer_category
Gravity
