Wastewater/Activity/PacpInspection/1.0May 23, 2017, 09:42 AM
15 0752_15 0751 _23052017_024219.mp4
- Date
- 05/23/2017
- W/O
- 619148
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00593
- PipeID
- P12952
- Time
- 2:42 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4560
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_619148_TV15202_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0752
- Downstream MH
- 15 0751
- Dir. of Survey
- Downstream
- Length Surveyed
- 327.9 ft.
- Total Length
- 327.9 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 195
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 137
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 332
Observation photos (3)

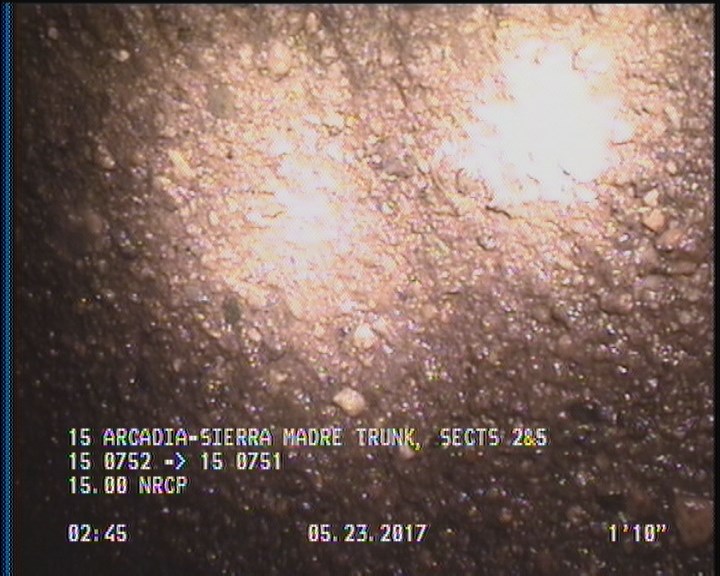

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

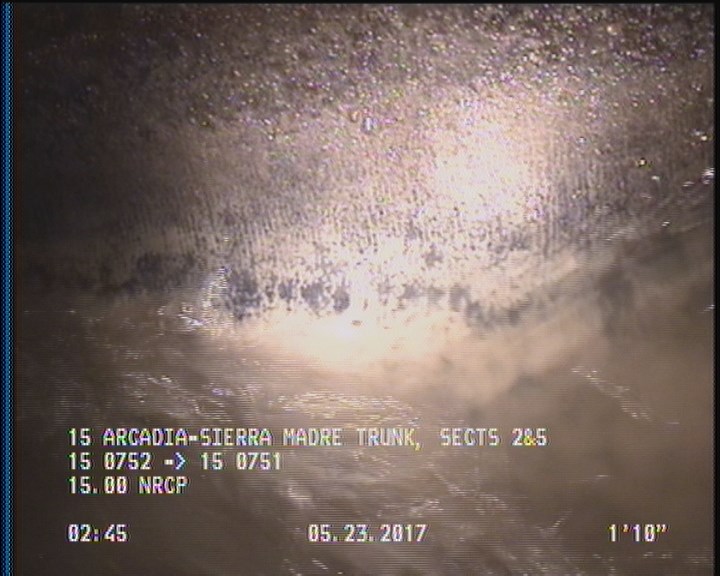

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

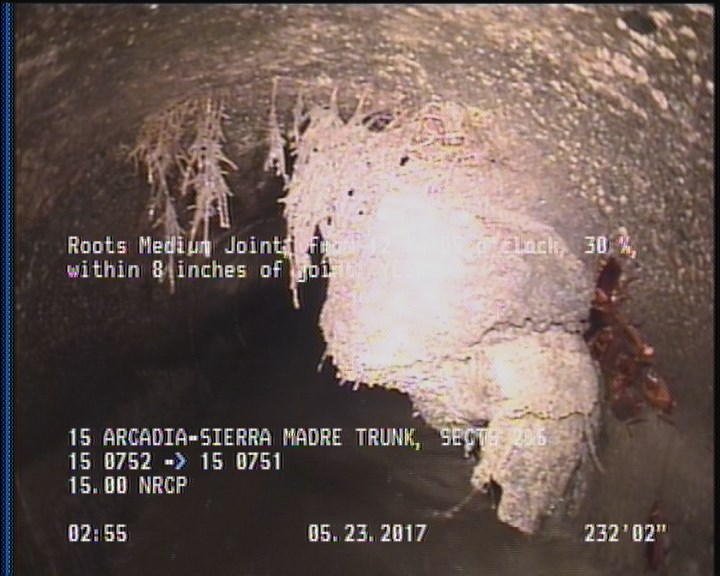

232.1 ft. - Roots Medium Joint, from 12 to 05 o'clock, 30 %, within 8 inches of joint: YESR
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 15 0752 |
| 45.6 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 232.1 | RMJ | — |
| 0 | MWM | — |
| 82.5 | TFC | — |
| 2 | SAP | — |
| 327.9 | SAP | — |
| 327.9 | MGO | COCKROACHES IN MANHOLE |
| 185.6 | TFA | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 158.8 | TBA | — |
| 2 | DAGS | — |
| 155.3 | TFC | — |
| 327.9 | DAGS | — |
| 327.9 | AMH | 15 0751 |
Properties (5)
- additional_info
- SC345236
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-23T02:42:08-07:00
- sewer_category
- Gravity
