Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2017, 10:51 AM

  • 15 0757A_15 0757 _23052017_035312.mp4

Date
05/23/2017
W/O
619148
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00593
PipeID
P12958
Time
3:51 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4560
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
08
Purpose
Routine Assessment
Project
WO_619148_TV15202_MAY2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0757
Downstream MH
15 0757A
Dir. of Survey
Upstream
Length Surveyed
85.4 ft.
Total Length
85.4 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 15 0757 to 15 0757A
MH: 15 0757MH: 15 0757Aupstream0 ft. AMH - Upstream Manhole, Survey Ends - 15 0757A1.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish1.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish11.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"15.7 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"34 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"36.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"70.9 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"74.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"78.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"83.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start83.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start85.4 ft. MWL - Water Level, 20 %of cross sectional area85.4 ft. AMH - Downstream Manhole, Survey Begins - 15 075785.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE85.4 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (2)

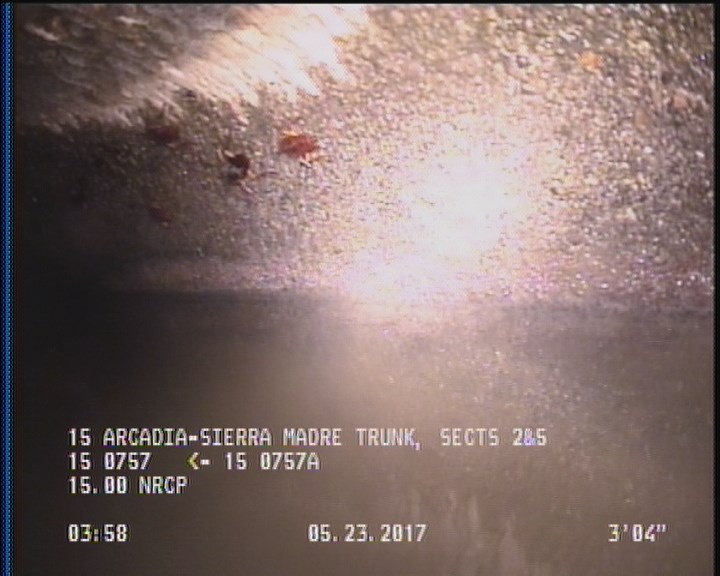

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

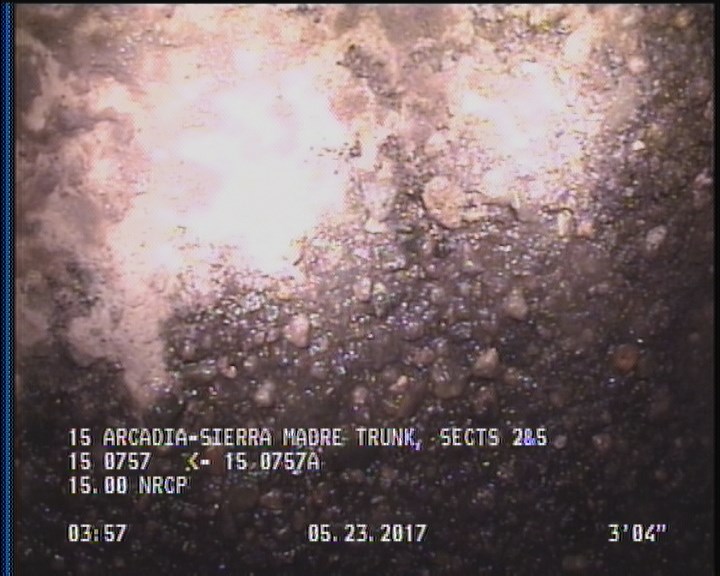

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P12958Work order 619148

Observations (17)

DistanceCodeObservation
0MWL—
69.7TBA—
84.1DAGS—
84.1MGOCOCKROACHES IN MANHOLE
0AMH15 0757
2DAGS—
85.4AMH15 0757A
2SAP—
49.1TFC—
73.5TFC—
10.8TFC—
0MGOCOCKROACHES IN MANHOLE
84.1SAP—
51.4TBA—
0MWM—
14.5TBA—
6.9TFA—

Properties (5)

additional_info
SC345236
custom_field_two
3
customer
LACSD
datetime
2017-05-23T03:51:31-07:00
sewer_category
Gravity
