Wastewater/Activity/PacpInspection/1.0May 24, 2017, 10:41 AM
15 0746_15 0863 _24052017_034147.mp4
- Date
- 05/24/2017
- W/O
- 619148
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00593
- PipeID
- P12946
- Time
- 3:41 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4561
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_619148_TV15202_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0746
- Downstream MH
- 15 0863
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.7 ft.
- Total Length
- 87.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 51
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 34
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 85
Observation photos (2)

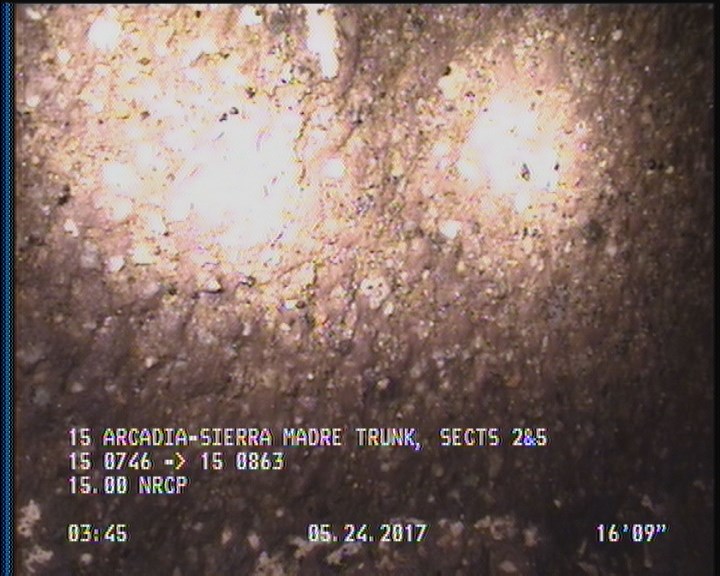

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

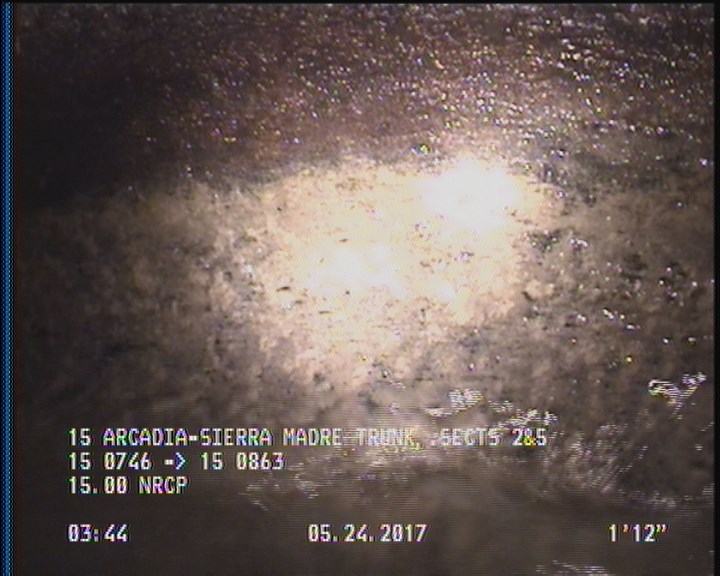

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 87.7 | AMH | 15 0863 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 0 | AMH | 15 0746 |
| 85.4 | TBA | — |
| 86.9 | DAGS | — |
| 87.7 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 39.7 | TBA | — |
| 6.1 | TFA | — |
| 86.9 | SAV | — |
| 82.1 | TFC | — |
| 86.9 | MGO | ACTIVE CONNECTIONS AT MH 3 O'CLOCK |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345237
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-24T03:41:26-07:00
- sewer_category
- Gravity
