Wastewater/Activity/PacpInspection/1.0May 24, 2017, 07:59 AM
15 0759A_15 0759 _24052017_010014.mp4
- Date
- 05/24/2017
- W/O
- 619148
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00593
- PipeID
- P12961
- Time
- 12:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4561
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_619148_TV15202_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0759A
- Downstream MH
- 15 0759
- Dir. of Survey
- Downstream
- Length Surveyed
- 156.6 ft.
- Total Length
- 156.6 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 148
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 64
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 212
Observation photos (3)

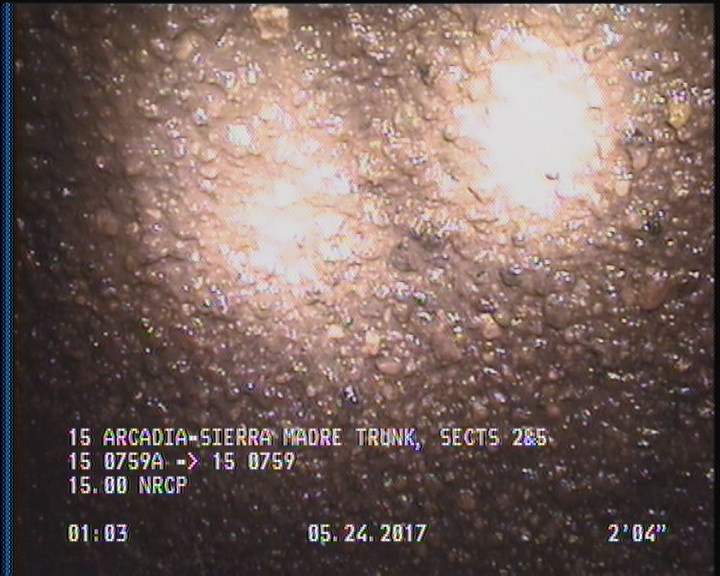

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

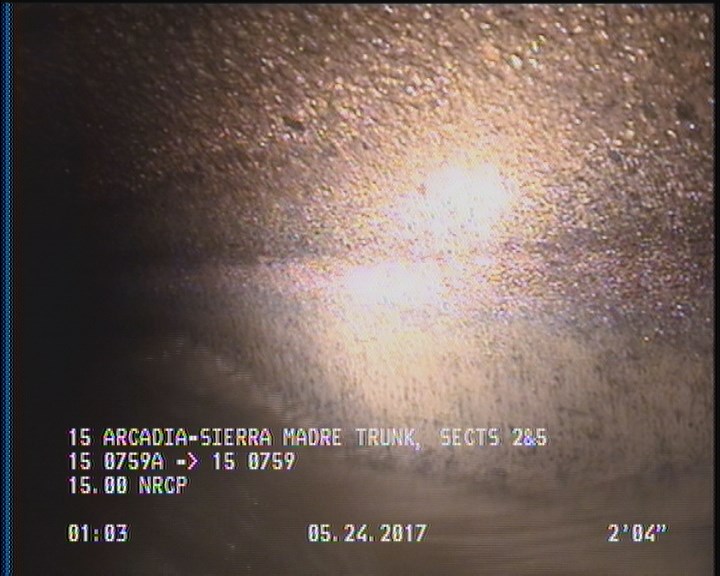

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

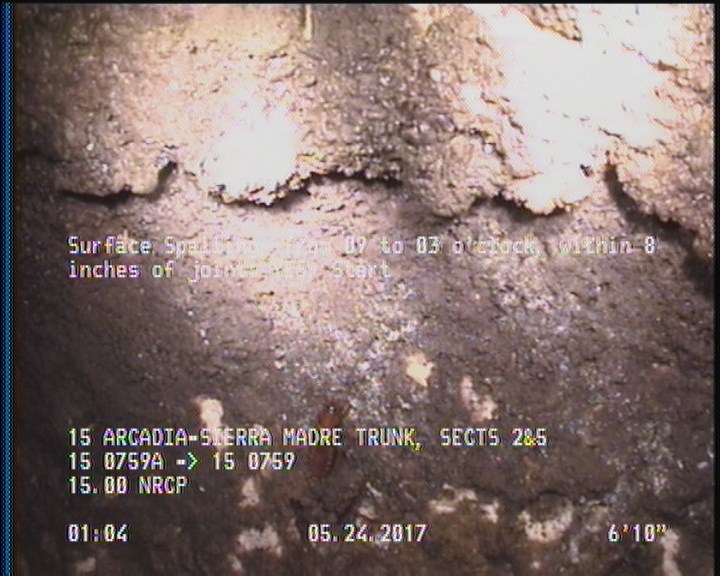

6.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 109.8 | TBA | — |
| 150.5 | SSS | — |
| 0 | MGO | ACTIVE CONNECTIONS AT MH 9 O'CLOCK |
| 82.2 | TFC | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 154.1 | SAP | — |
| 154.1 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 79.2 | TFA | — |
| 73.4 | TBA | — |
| 6.9 | SSS | — |
| 156.6 | AMH | 15 0759 |
| 0 | AMH | 15 0759A |
| 9.4 | TFC | — |
| 154.1 | DAGS | — |
Properties (5)
- additional_info
- SC345237
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-24T00:59:57-07:00
- sewer_category
- Gravity
