Wastewater/Activity/PacpInspection/1.0May 22, 2017, 09:07 AM
02 0604_02 0603 _22052017_020754.mp4
- Date
- 05/22/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03150
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4558
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0604
- Downstream MH
- 02 0603
- Dir. of Survey
- Downstream
- Length Surveyed
- 331 ft.
- Total Length
- 331 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 130
Observation photos (2)

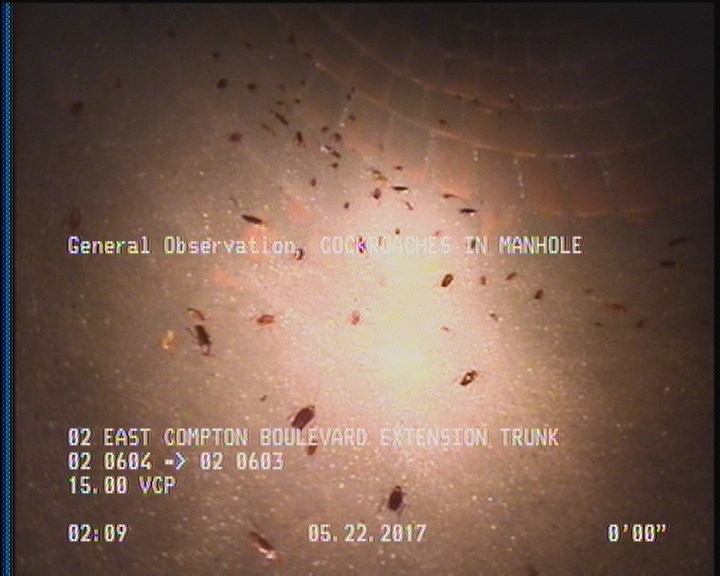

0 ft. - General Observation - COCKROACHES IN MANHOLE

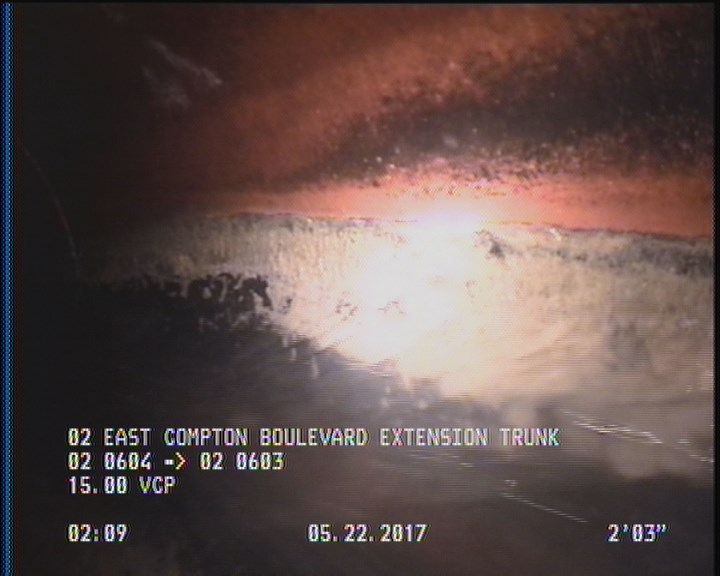

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | AMH | 02 0604 |
| 331 | MGO | COCKROACHES IN MANHOLE |
| 206.1 | TFC | — |
| 331 | AMH | 02 0603 |
| 102.2 | TFA | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 328.7 | DAGS | — |
| 0 | MWL | — |
| 331 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345234
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-22T02:07:38-07:00
- sewer_category
- Gravity
