Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2017, 06:03 AM

  • 02 0600_02 0599 _22052017_230413.mp4

Date
05/22/2017
W/O
618894
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00258
PipeID
P03145
Time
11:03 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4559
Sewer Name
02 EAST COMPTON BOULEVARD EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_618894_TV02057_MAY2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0600
Downstream MH
02 0599
Dir. of Survey
Downstream
Length Surveyed
355.7 ft.
Total Length
355.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
140
Pipe schematic from manhole 02 0600 to 02 0599
MH: 02 0600MH: 02 0599downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 06000 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start25.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"128.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"340.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"354 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish355.7 ft. AMH - Downstream Manhole, Survey Ends - 02 0599355.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (1)

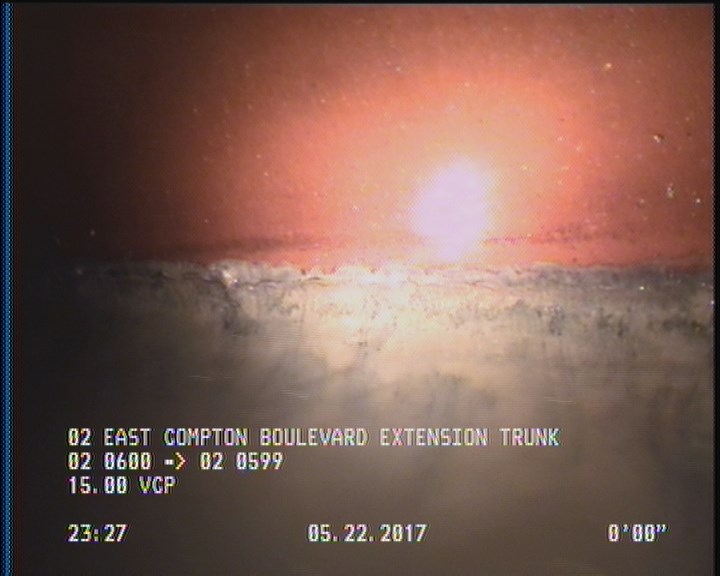

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P03145Work order 618894

Observations (11)

DistanceCodeObservation
0AMH02 0600
354DAGS—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
355.7AMH02 0599
0MWM—
355.7MGOCOCKROACHES IN MANHOLE
25.3TFA—
340.2TFA—
128.8TFA—
0MWL—

Properties (5)

additional_info
SC345235
custom_field_two
4
customer
LACSD
datetime
2017-05-22T23:03:51-07:00
sewer_category
Gravity
