Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 19, 2017, 10:03 AM

  • 02 0626A_02 0626_19052017_030753.mp4

Date
05/19/2017
W/O
618894
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00258
PipeID
P03177
Time
3:03 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4557
Sewer Name
02 EAST COMPTON BOULEVARD EXTENSION TRUNK
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_618894_TV02057_MAY2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0626
Downstream MH
02 0626A
Dir. of Survey
Upstream
Length Surveyed
277 ft.
Total Length
277 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
110
Overall Index
2
Overall Quick
—
Overall Rating
110
Pipe schematic from manhole 02 0626 to 02 0626A
MH: 02 0626MH: 02 0626Aupstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Ends - 02 0626A0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK1.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish88.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"165 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"208.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"256.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"275 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start277 ft. AMH - Downstream Manhole, Survey Begins - 02 0626277 ft. MWM - Water Mark, 25 %of cross sectional area277 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (1)

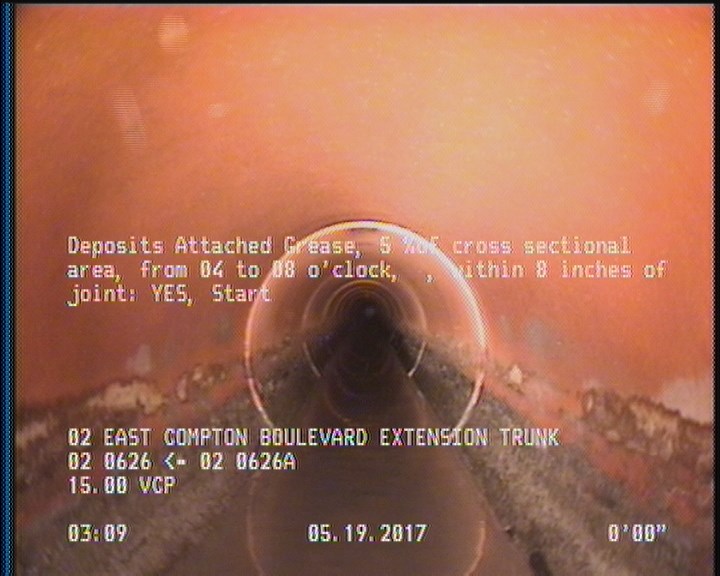

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P03177Work order 618894

Observations (13)

DistanceCodeObservation
0AMH02 0626
277MGOCOCKROACHES IN MANHOLE
188.3TBA—
277AMH02 0626A
0MWM—
20.1TFC—
112TF—
0MWL—
277MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
148.4TFC—
68.2TFC—
275.6DAGS—

Properties (5)

additional_info
SC345233
custom_field_two
4
customer
LACSD
datetime
2017-05-19T03:03:35-07:00
sewer_category
Gravity
