Wastewater/Activity/PacpInspection/1.0May 31, 2017, 08:00 AM
14 0563A_14 0563 _31052017_011227.mp4
- Date
- 05/31/2017
- W/O
- 635594
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00581
- PipeID
- P18658
- Time
- 1:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4565
- Sewer Name
- 14 TRUNK "E"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_635594_TV14049_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0563
- Downstream MH
- 14 0563A
- Dir. of Survey
- Upstream
- Length Surveyed
- 88 ft.
- Total Length
- 88 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 36
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

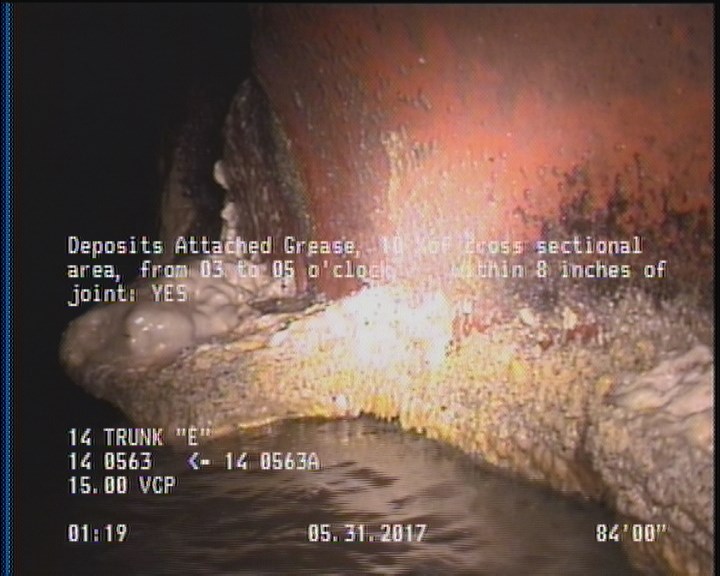

84 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 05 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | AMH | 14 0563 |
| 7.2 | TFC | — |
| 0 | MWM | — |
| 88 | AMH | 14 0563A |
| 88 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 88 | DAGS | — |
| 84 | DAGS | — |
Properties (4)
- additional_info
- SC345241
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-31T01:00:48-07:00
