Wastewater/Activity/PacpInspection/1.0May 30, 2017, 09:51 AM
14 0572_14 0571 _30052017_025135.mp4
- Date
- 05/30/2017
- W/O
- 635594
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00581
- PipeID
- P18668
- Time
- 2:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4564
- Sewer Name
- 14 TRUNK "E"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_635594_TV14049_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0571
- Downstream MH
- 14 0572
- Dir. of Survey
- Upstream
- Length Surveyed
- 335.1 ft.
- Total Length
- 335.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 132
Observation photos (1)

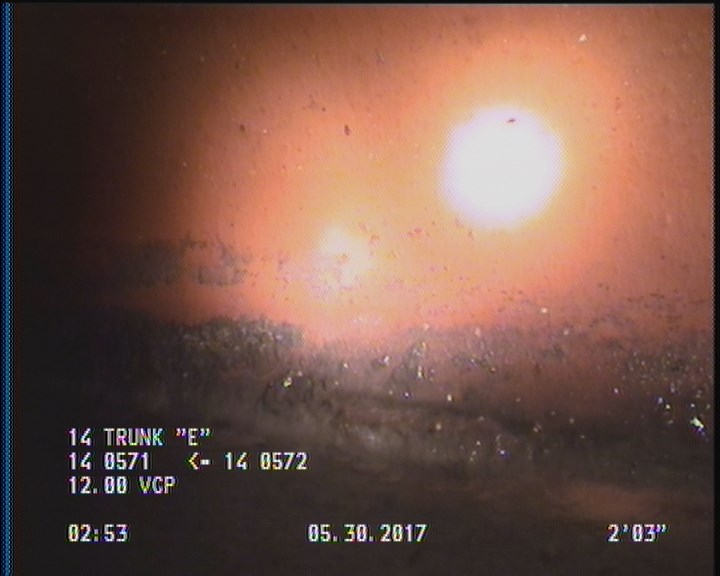

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 334 | DAGS | — |
| 33.6 | TFC | — |
| 335.1 | MGO | COCKROACHES IN MANHOLE |
| 335.1 | AMH | 14 0572 |
| 240.2 | TFC | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | 14 0571 |
| 134.3 | TFC | — |
| 335.1 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC345240
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-30T02:51:11-07:00
