Wastewater/Activity/PacpInspection/1.0May 31, 2017, 10:17 AM
14 0559_14 0404 _31052017_031748.mp4
- Date
- 05/31/2017
- W/O
- 635594
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00581
- PipeID
- P18653
- Time
- 3:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4565
- Sewer Name
- 14 TRUNK "E"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_635594_TV14049_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0559
- Downstream MH
- 14 0404
- Dir. of Survey
- Downstream
- Length Surveyed
- 352.2 ft.
- Total Length
- 352.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (2)

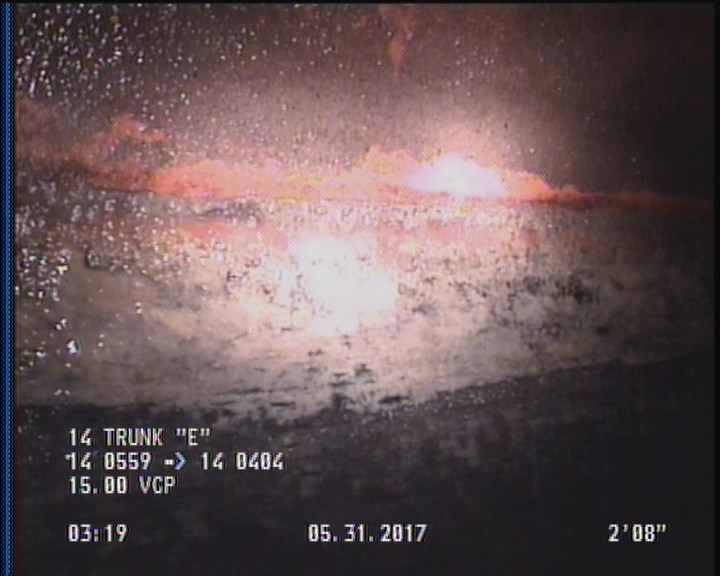

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

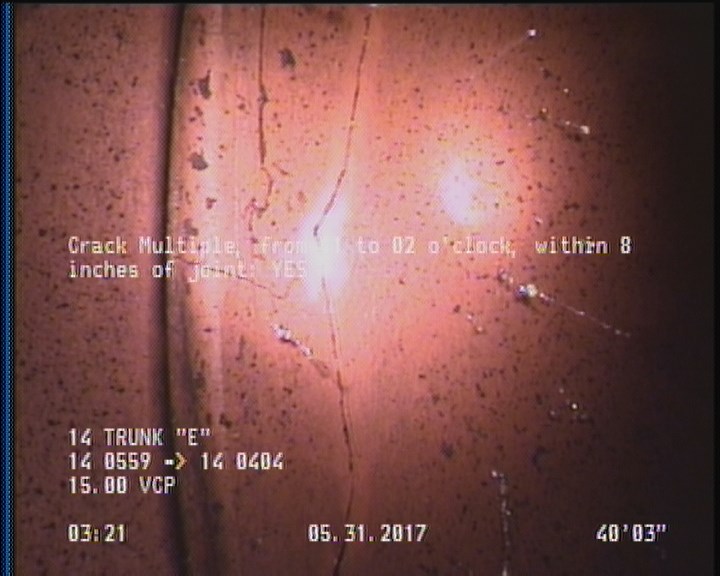

40.3 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 26.5 | TF | — |
| 350.5 | DAGS | — |
| 82 | TFC | — |
| 0 | MWL | — |
| 86.8 | TBA | — |
| 301.8 | TFC | — |
| 352.2 | AMH | 14 0404 |
| 2 | DAGS | — |
| 0 | AMH | 14 0559 |
| 227 | TFC | — |
| 141.6 | TFC | — |
| 40.3 | CM | — |
Properties (4)
- additional_info
- SC345241
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-31T03:17:29-07:00
