Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2017, 06:06 AM

  • 15 1164_15 1163 _20170525_002357.mp4

Date
05/24/2017
W/O
635526
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00635
PipeID
P25910
Time
11:06 PM
Certificate
U-715-0700070
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4531
Sewer Name
15 TYLER AVENUE RELIEF TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
17
Purpose
Routine Assessment
Project
WO_635526_TV15082_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
15 1164
Downstream MH
15 1163
Dir. of Survey
Downstream
Length Surveyed
324.4 ft.
Total Length
324.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
128
Overall Index
2
Overall Quick
—
Overall Rating
128
Pipe schematic from manhole 15 1164 to 15 1163
MH: 15 1164MH: 15 1163downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 11643.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start43.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6"52.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"170.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"179.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6"202.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6"324.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish324.4 ft. AMH - Downstream Manhole, Survey Ends - 15 1163324.4 ft. MGO - General Observation - ACTIVE CONNETION 9 OC

Observation photos (1)

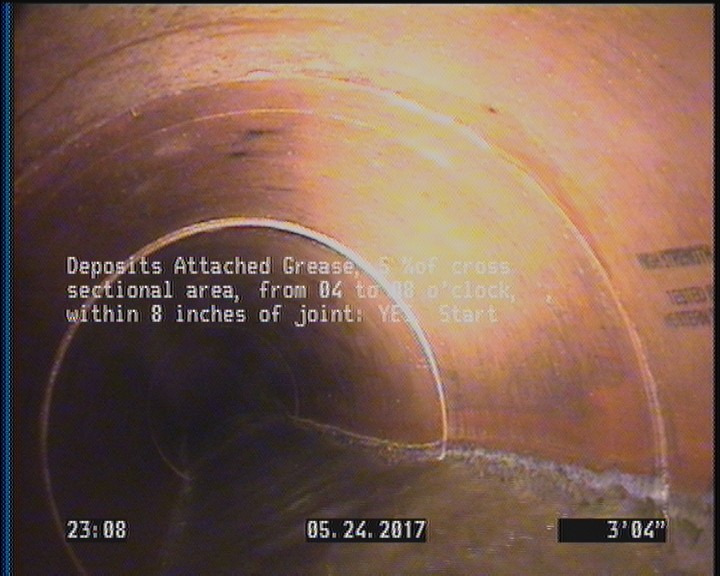

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P25910Work order 635526

Observations (12)

DistanceCodeObservation
324.4DAGS—
324.4AMH15 1163
202.8TF—
3.3DAGS—
52.2TFA—
324.4MGOACTIVE CONNETION 9 OC
43.1TF—
0MWL—
0MWM—
0AMH15 1164
170.7TFA—
179.9TF—

Properties (5)

additional_info
SC340745
custom_field_two
3
customer
LACSD
datetime
2017-05-24T23:06:00-07:00
year_laid
39519
