Wastewater/Activity/PacpInspection/1.0Feb 21, 2017, 07:28 PM
16 0205_B 1505 _03162017_035605.mpg
- Date
- 02/21/2017
- W/O
- 624488
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00637
- PipeID
- P25640
- Time
- 11:28 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4322
- Sewer Name
- 16 ALHAMBRA "A" LINE
- City
- ALHAMBRA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_624488_TV16006_MAR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 16 0205
- Downstream MH
- B 1505
- Dir. of Survey
- Downstream
- Length Surveyed
- 145.5 ft.
- Total Length
- 145.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 58
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 58
Observation photos (1)

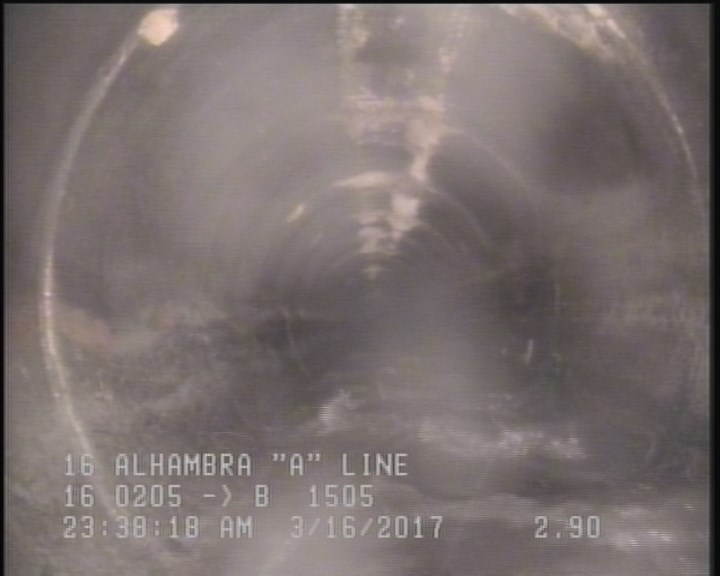

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.9 | DAGS | — |
| 145.5 | AMH | B 1505 |
| 145.5 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 79.1 | TB | — |
| 0 | AMH | 16 0205 |
Properties (4)
- additional_info
- SC318737
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-21T11:28:14-08:00
