Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2017, 08:02 AM

  • 14 0091_14 0090A _30032017_010324.mpg

Date
03/30/2017
W/O
624327
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00577
PipeID
P18107
Time
1:02 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4404
Sewer Name
14 TRUNK "A"
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
18
Purpose
Routine Assessment
Project
WO_624327_TV14017_MAR2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
14 0091
Downstream MH
14 0090A
Dir. of Survey
Downstream
Length Surveyed
273.3 ft.
Total Length
273.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 14 0091 to 14 0090A
MH: 14 0091MH: 14 0090Adownstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 00910 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MMC - Material Change, Vitrified clay pipe28.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"54.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"77.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"127.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"154.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"181.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"223 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"230.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"273.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK273.3 ft. AMH - Downstream Manhole, Survey Ends - 14 0090A

Observation photos (1)

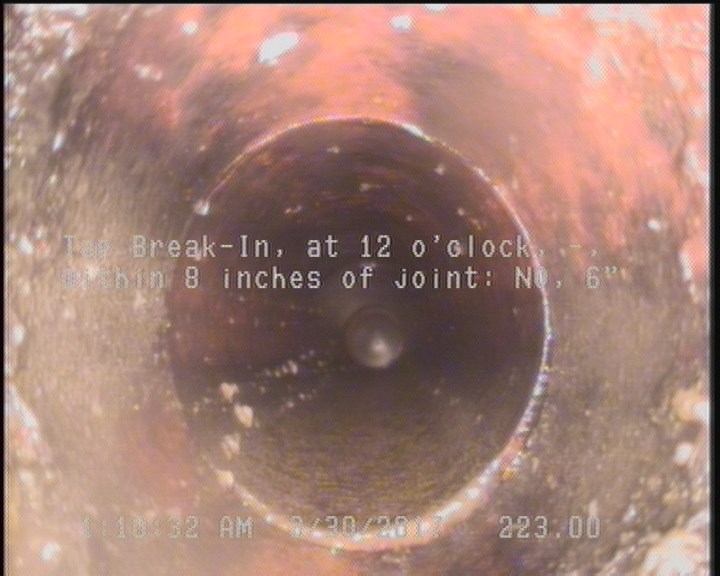

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    223 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P18107Work order 624327

Observations (17)

DistanceCodeObservation
0MWM—
2MMC—
54.8TFC—
203.9TFC—
127.6TFC—
181.3TF—
104.6TFC—
0AMH14 0091
273.3MGOCONNECTION AT MH 3 O'CLOCK
28.2TFC—
273.3AMH14 0090A
230.8TFC—
154.3TFC—
77.5TFC—
223TB—
0MWL—
254.4TFC—

Properties (4)

additional_info
SC345163
custom_field_two
4
customer
LACSD
datetime
2017-03-30T01:02:55-07:00
