Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 06:42 AM
03 0145_03 0144_20160830_005211.mp4
- Date
- 08/29/2016
- W/O
- 579967
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00363
- PipeID
- P04761
- Time
- 11:42 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3693
- Sewer Name
- 03 LAKEWOOD TRUNK
- City
- LAKEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_579967_TV03005_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 03 0145
- Downstream MH
- 03 0144
- Dir. of Survey
- Downstream
- Length Surveyed
- 295.8 ft.
- Total Length
- 295.8 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

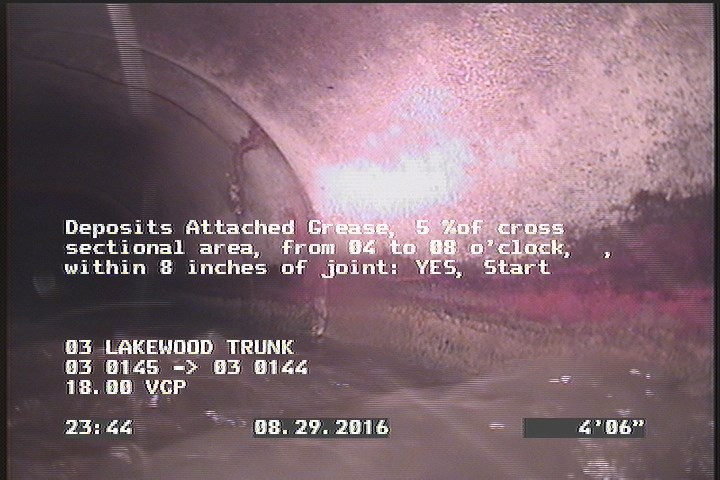

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

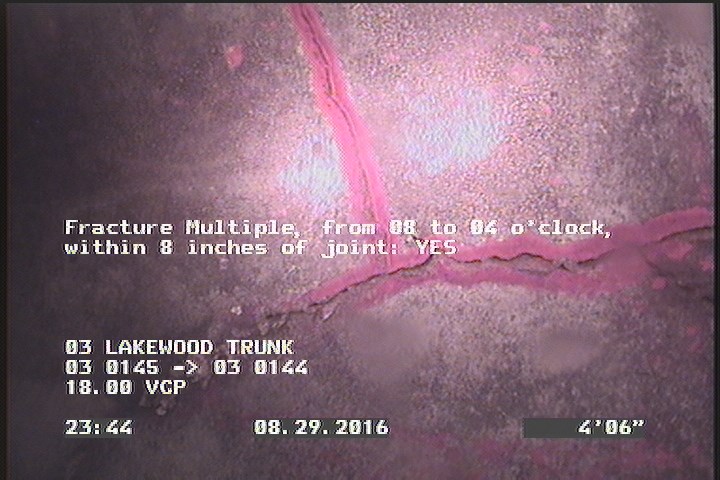

4.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

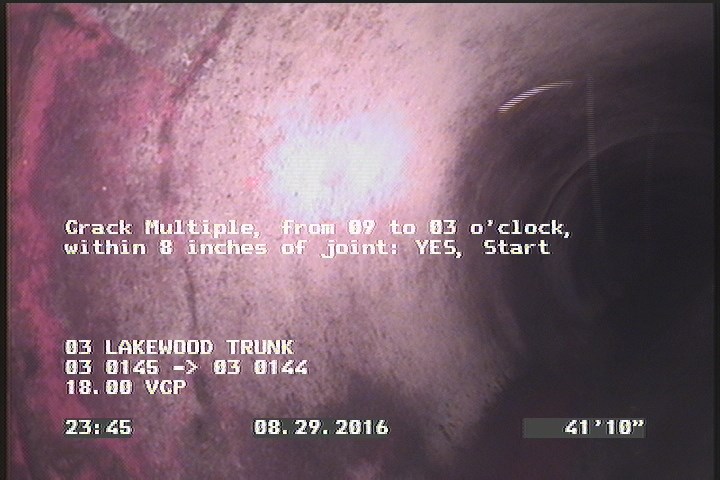

41.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 154.1 | TBA | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 252.3 | TBA | — |
| 41.8 | CM | — |
| 295.8 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 4.5 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 295.8 | AMH | 03 0144 |
| 4.5 | FM | — |
| 0 | AMH | 03 0145 |
| 291.7 | DAGS | — |
| 291.7 | CM | — |
Properties (4)
- additional_info
- SC306023
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-29T23:42:00-07:00
