Wastewater/Activity/PacpInspection/1.0Mar 7, 2017, 07:20 AM
05 0772_05 0771 _06032017_232026.mp4
- Date
- 03/06/2017
- W/O
- 624365
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00553
- PipeID
- P05999
- Time
- 11:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4369
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_624365_TV05272_MAR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0771
- Downstream MH
- 05 0772
- Dir. of Survey
- Upstream
- Length Surveyed
- 412.1 ft.
- Total Length
- 412.1 ft.
- Structural Index
- 4
- Structural Quick
- 514O
- Structural Rating
- 325
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 325
Observation photos (2)

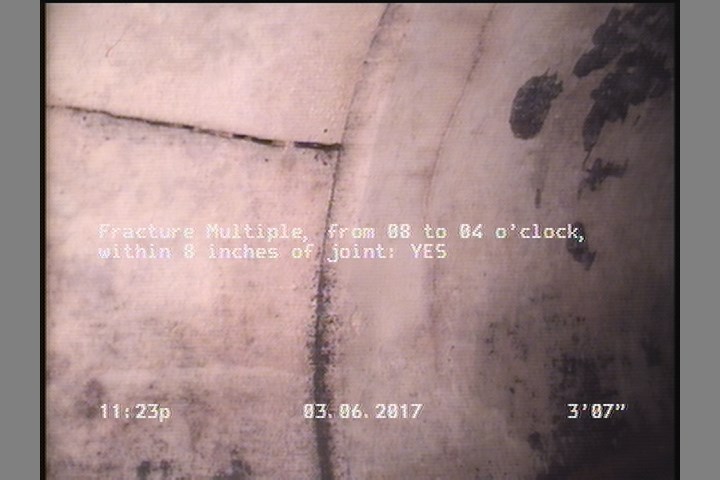

3.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

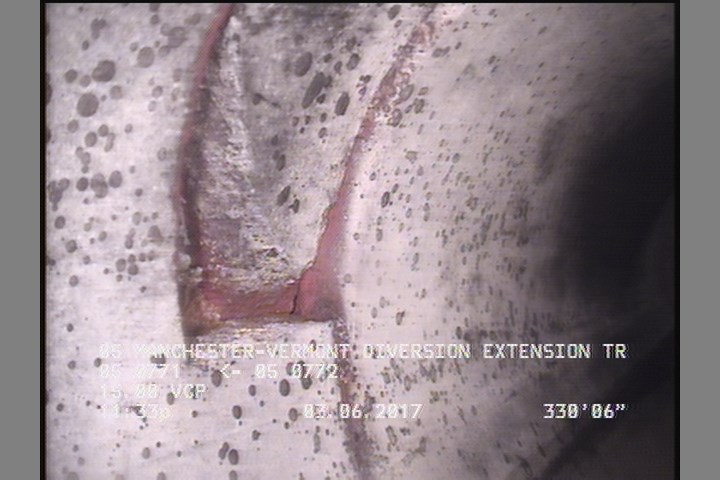

330.5 ft. - Broken, from 09 to 12 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 330.5 | B | — |
| 0 | MWL | — |
| 0 | AMH | 05 0771 |
| 3.6 | FM | — |
| 0 | MWM | — |
| 405.6 | FM | — |
| 412.1 | AMH | 05 0772 |
Properties (5)
- additional_info
- SC306879
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-03-06T23:20:01-08:00
- sewer_category
- Gravity
