Wastewater/Activity/PacpInspection/1.0Feb 2, 2017, 08:05 AM
J 0303_J 0302_02022017_001544.mpg
- Date
- 02/02/2017
- W/O
- 619078
- Weather
- Dry
- Operator/Surveyor
- R,VARGAS
- Sewer ID
- Z00059
- PipeID
- P11544
- Time
- 12:05 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4103
- Sewer Name
- J JOINT OUTFALL J - UNIT 1G
- City
- RANCHO PALOS VERDES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 41
- Purpose
- Routine Assessment
- Project
- WO_619078_TV05169_FEB2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- J 0302
- Downstream MH
- J 0303
- Dir. of Survey
- Upstream
- Length Surveyed
- 157 ft.
- Total Length
- 157 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 90
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 60
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 150
Observation photos (3)
2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

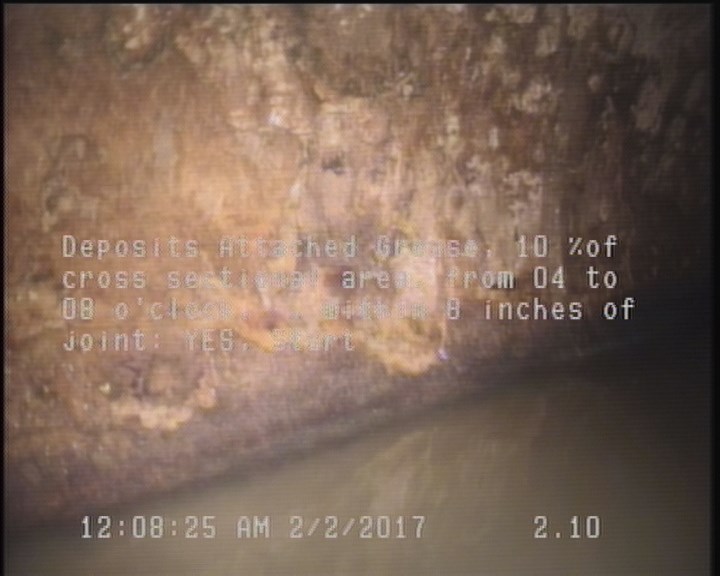

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

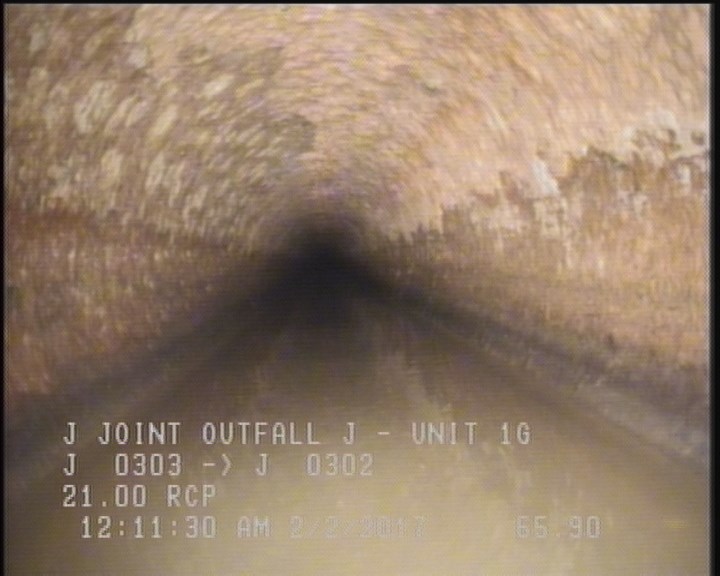

65.9 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 65.9 | MGP | — |
| 0 | MWL | — |
| 0 | AMH | J 0302 |
| 153.7 | SAV | — |
| 153.7 | MGO | MAGNEZIUM H.O. FINISH |
| 2.1 | SAV | — |
| 153.7 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 157 | AMH | J 0303 |
| 0 | MWM | — |
| 2.1 | DAGS | — |
Properties (5)
- additional_info
- SC318645
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-02T00:05:59-08:00
- sewer_category
- Gravity
