Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 11:00 AM
14 0467_14 0466 _01242017_030152.mp4
- Date
- 01/24/2017
- W/O
- 618867
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18556
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4219
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_618867_TV14023_FEB2017
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0467
- Downstream MH
- 14 0466
- Dir. of Survey
- Downstream
- Length Surveyed
- 341.8 ft.
- Total Length
- 341.8 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 204
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 136
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 340
Observation photos (2)

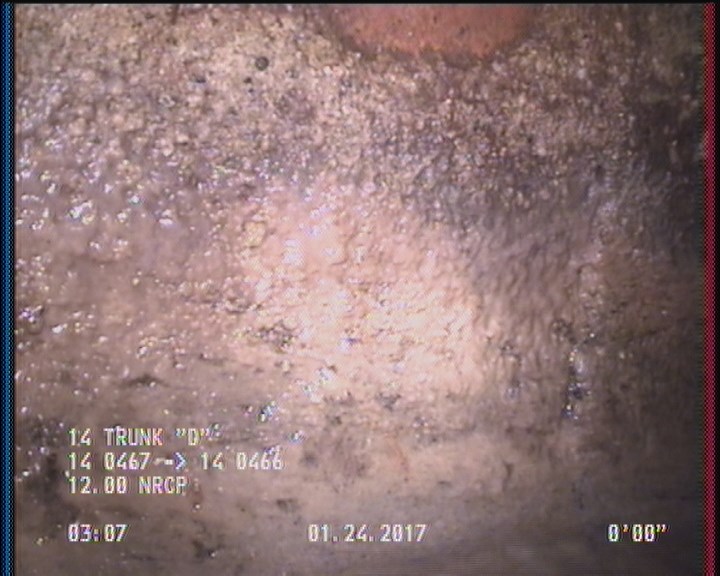

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

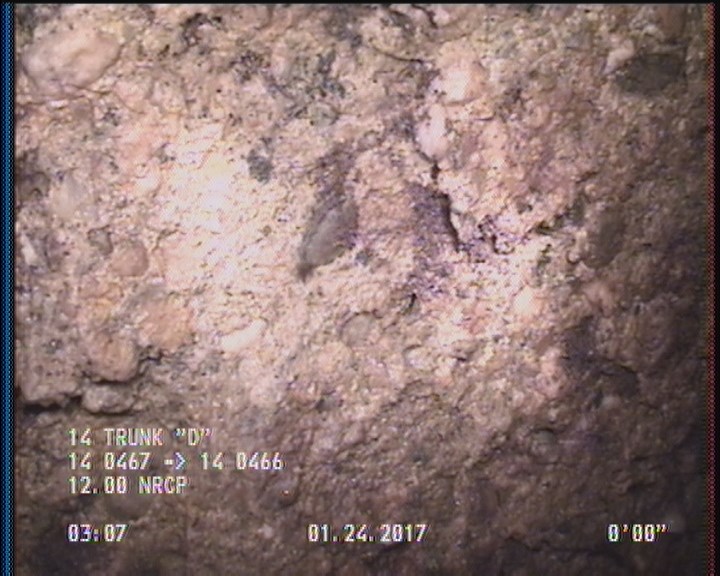

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 341.8 | DAGS | — |
| 341.8 | AMH | 14 0466 |
| 149 | TFC | — |
| 0 | MWM | — |
| 341.8 | SAP | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 14 0467 |
| 76.5 | TFC | — |
| 300.1 | TFC | — |
| 226.5 | TFC | — |
| 2 | SAP | — |
Properties (5)
- additional_info
- SC306721
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-24T03:00:14-08:00
- sewer_category
- Gravity
