Wastewater/Activity/PacpInspection/1.0Sep 29, 2016, 07:52 AM
22 1278_22 1277 _09292016_005215.mp4
- Date
- 09/29/2016
- W/O
- 597488
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00806
- PipeID
- P16474
- Time
- 12:52 AM
- Certificate
- U5073386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3722
- Sewer Name
- 22 DISTRICT #22 MAIN RELIEF TRUNK
- City
- WEST COVINA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_597488_TV22152_OCT2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 22 1278
- Downstream MH
- 22 1277
- Dir. of Survey
- Downstream
- Length Surveyed
- 604 ft.
- Total Length
- 604 ft.
- Structural Index
- 1
- Structural Quick
- 1W00
- Structural Rating
- 119
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 238
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 357
Observation photos (2)

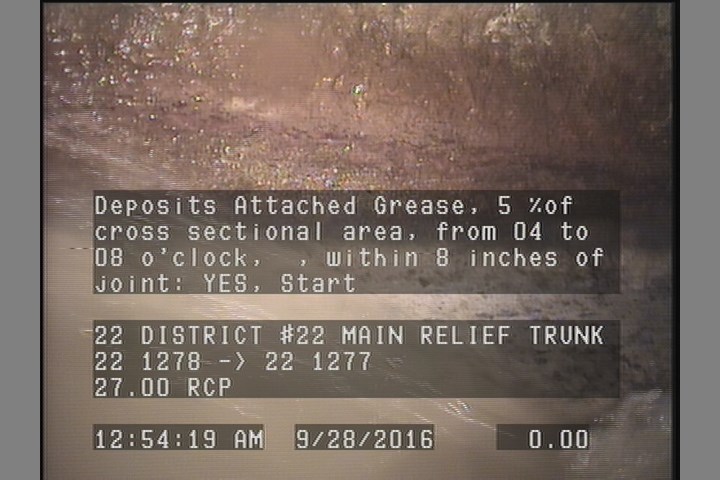

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

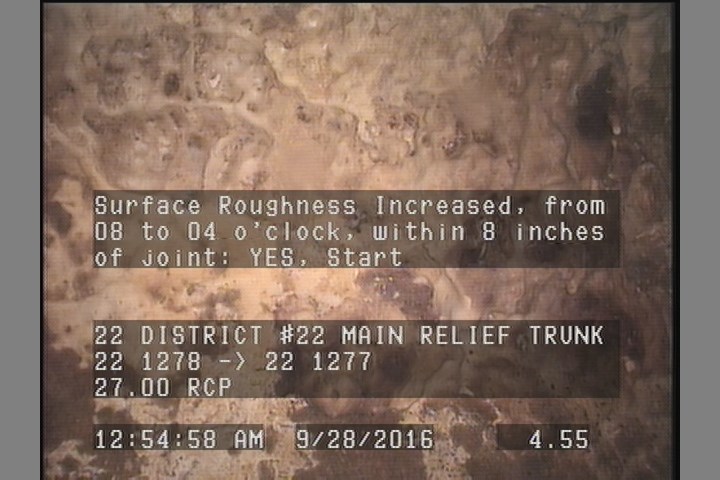

4.6 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 597.1 | DAGS | — |
| 2 | MGO | MAG. H.OX START 75% |
| 0 | MWL | — |
| 604 | AMH | 22 1277 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 4.6 | SRI | — |
| 0 | AMH | 22 1278 |
| 597.2 | SRI | — |
Properties (6)
- additional_info
- SC303708
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-29T00:52:00-07:00
- sewer_category
- Gravity
- year_laid
- 30238
