  • 30 0190_30 0189 _08122016_071236.mp4

Date
12/08/2016
W/O
597389
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00860
PipeID
P17891
Time
7:08 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3845
Sewer Name
30 EL PORTO TRUNK
City
MANHATTEN BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
01
Purpose
Routine Assessment
Project
WO_597389_TV30002_OCT2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
30 0189
Downstream MH
30 0190
Dir. of Survey
Upstream
Length Surveyed
94.1 ft.
Total Length
94.1 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 30 0189 to 30 0190
MH: 30 0189MH: 30 0190upstream0 ft. AMH - Upstream Manhole, Survey Ends - 30 01904.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES63.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES94.1 ft. AMH - Downstream Manhole, Survey Begins - 30 018994.1 ft. MWM - Water Mark, 15 %of cross sectional area94.1 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

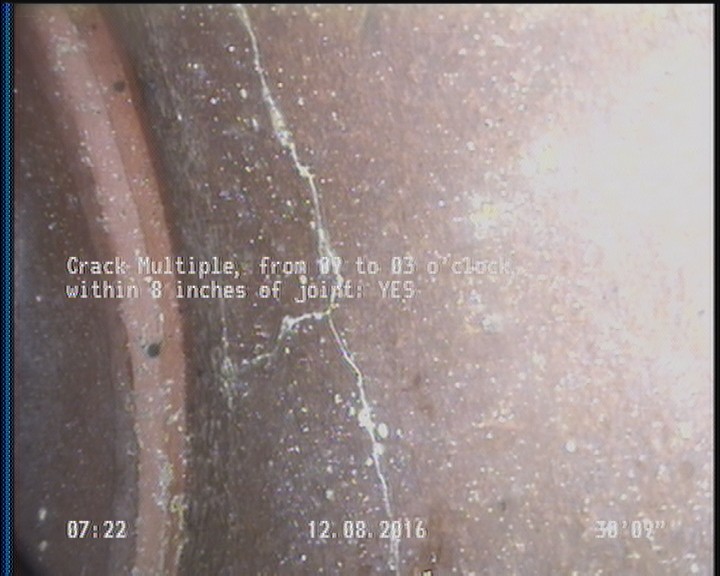

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    30.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

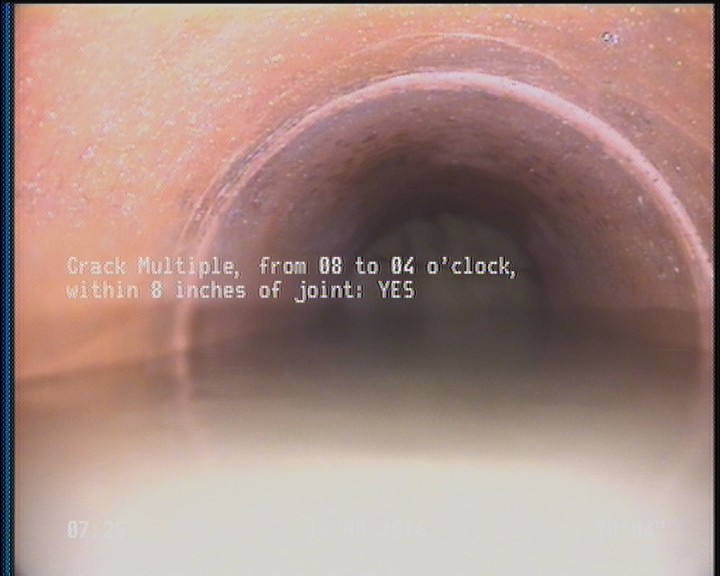

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    90 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P17891Work order 597389

Observations (6)

DistanceCodeObservation
94.1AMH30 0190
0AMH30 0189
90CM—
0MWM—
0MWL—
30.8CM—

Properties (5)

additional_info
SC304595
custom_field_two
4
customer
LACSD
datetime
2016-12-08T07:08:29-08:00
sewer_category
Gravity
