Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 04:34 PM
20 0259_20 0258_12202016_194112.mp4
- Date
- 09/22/2016
- W/O
- 597309
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19226
- Time
- 9:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3787
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_597309_TV20009_OCT2016
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0258
- Downstream MH
- 20 0259
- Dir. of Survey
- Upstream
- Length Surveyed
- 382.8 ft.
- Total Length
- 382.8 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 156
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 536
Observation photos (3)

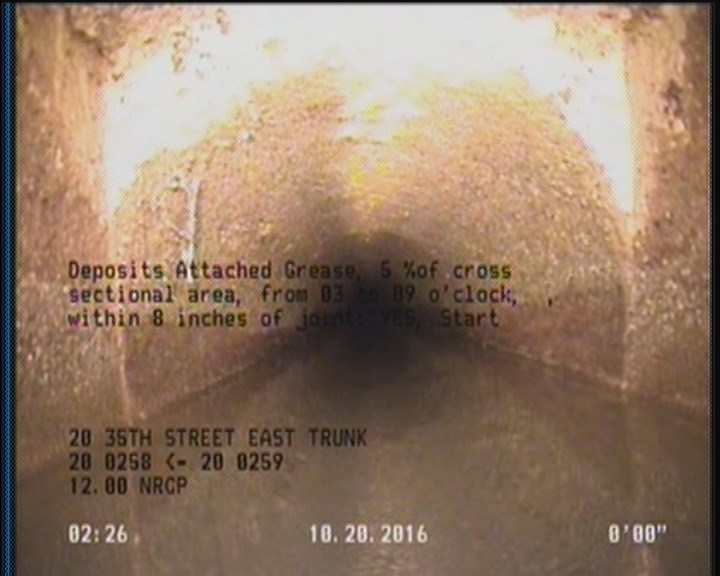

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

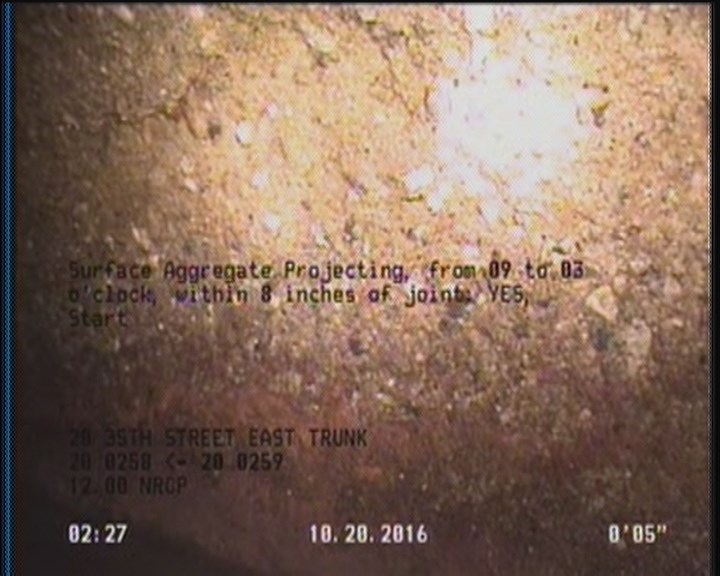

0 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

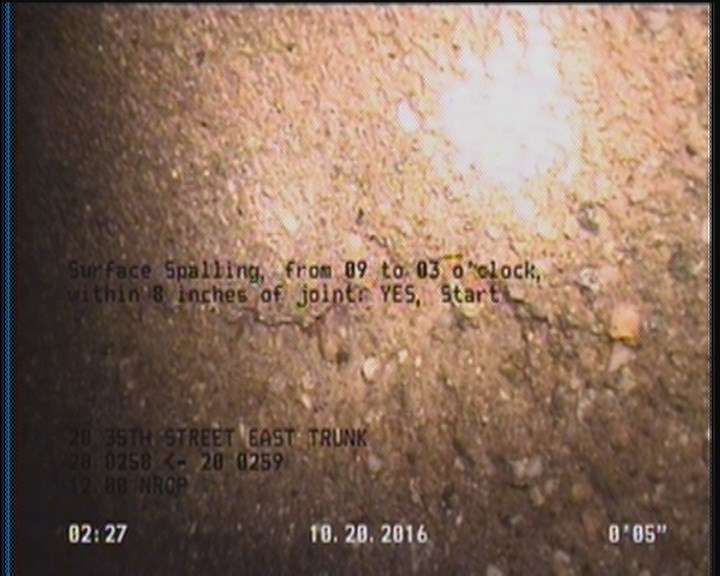

0.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 280.9 | TFC | — |
| 0 | AMH | 20 0258 |
| 79.5 | TFC | — |
| 329.6 | TFC | — |
| 0.4 | SSS | — |
| 369.7 | TFC | — |
| 0 | MWL | — |
| 380.1 | DAGS | — |
| 380.1 | SSS | — |
| 31.7 | TFC | — |
| 0 | DAGS | — |
| 380.1 | SAP | — |
| 180.7 | TFC | — |
| 232.6 | TFC | — |
| 0 | SAP | — |
| 382.8 | AMH | 20 0259 |
| 127.8 | TFC | — |
Properties (5)
- additional_info
- SC306325
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-09-22T09:34:42-07:00
- sewer_category
- Gravity
