Wastewater/Activity/PacpInspection/1.0Oct 4, 2016, 06:57 AM
18 1248_18 0086 _04102016_000904.mp4
- Date
- 10/03/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13906
- Time
- 11:57 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3729
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 1248
- Downstream MH
- 18 0086
- Dir. of Survey
- Downstream
- Length Surveyed
- 313.9 ft.
- Total Length
- 313.9 ft.
- Structural Index
- 2
- Structural Quick
- 3K1K
- Structural Rating
- 244
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 244
Observation photos (3)

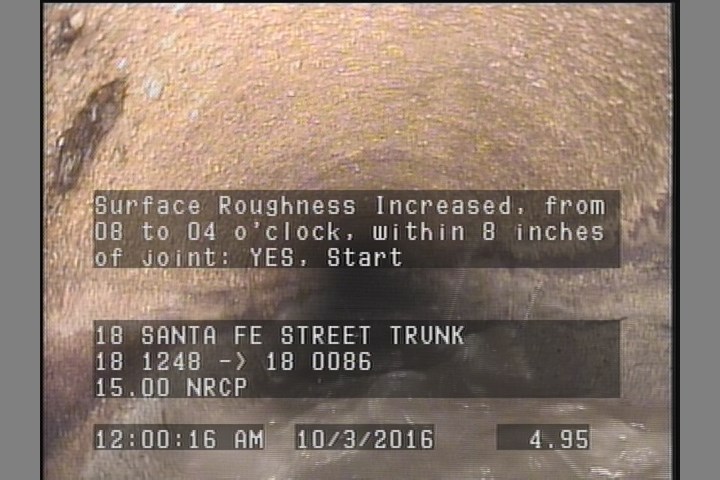

5 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

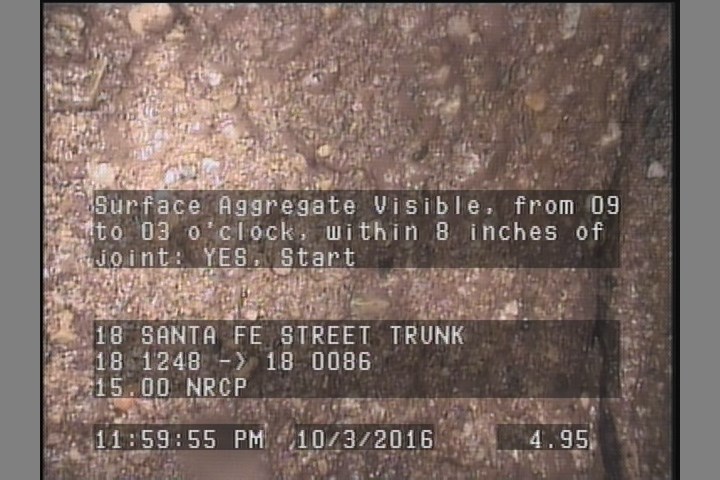

5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

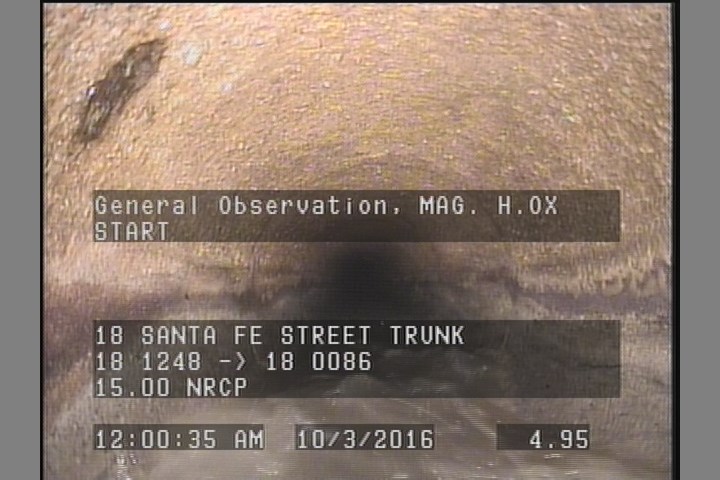

5 ft. - General Observation - MAG. H.OX START
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 5 | SRI | — |
| 313.9 | AMH | 18 0086 |
| 5 | SAV | — |
| 310.7 | SAV | — |
| 5 | MGO | MAG. H.OX START |
| 313.3 | MGO | CONNECTION AT MH 3 ACTIVE |
| 310.7 | SRI | — |
| 0 | MWM | — |
| 113.4 | TFC | — |
| 0 | MWL | — |
| 0 | AMH | 18 1248 |
| 0 | MGO | CONNECTION AT MH 9 ACTIVE |
| 213.8 | TFC | — |
Properties (5)
- additional_info
- SC303716
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-03T23:57:00-07:00
- sewer_category
- Gravity
