Wastewater/Activity/PacpInspection/1.0Oct 6, 2016, 07:30 AM
18 0101_18 0100 _06102016_004020.mp4
- Date
- 10/06/2016
- W/O
- 597011
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00698
- PipeID
- P13921
- Time
- 12:30 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3731
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_597011_TV18083_OCT2016
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0101
- Downstream MH
- 18 0100
- Dir. of Survey
- Downstream
- Length Surveyed
- 130.4 ft.
- Total Length
- 130.4 ft.
- Structural Index
- 3
- Structural Quick
- 3D2D
- Structural Rating
- 125
- O&M Index
- 2
- O&M Quick
- 2D12
- O&M Rating
- 52
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 177
Observation photos (3)

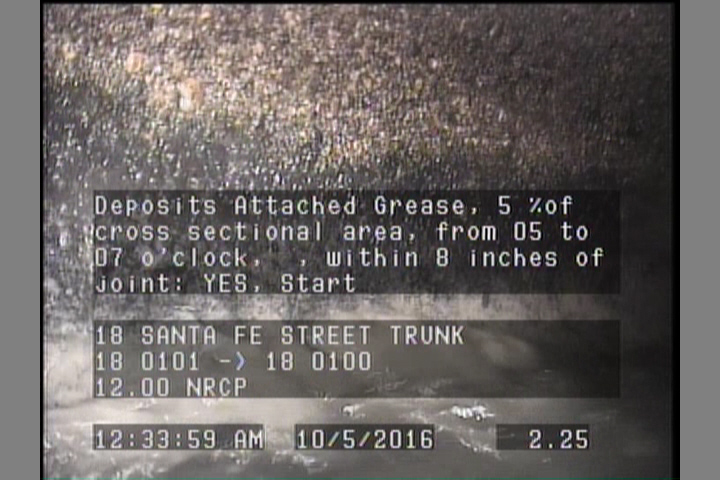

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
2.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

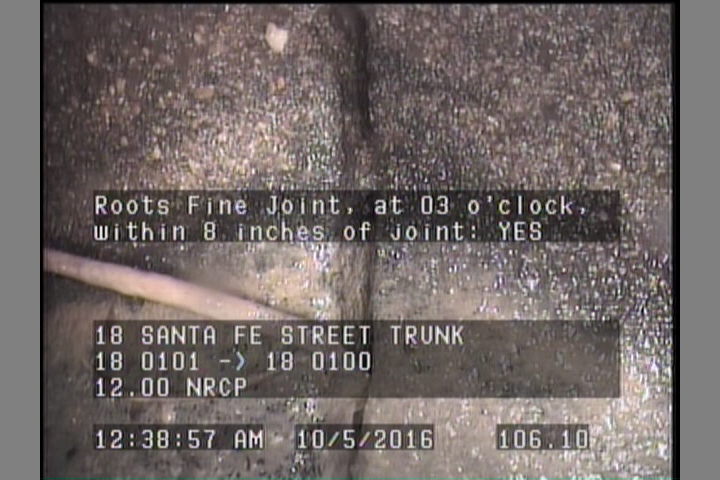

106.1 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.3 | DAGS | — |
| 127 | SAV | — |
| 31 | TFC | — |
| 2.3 | SSS | — |
| 83.1 | TFC | — |
| 2 | SAV | — |
| 0 | MWL | — |
| 34 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 ACTIVE |
| 126.5 | SSS | — |
| 0 | MGO | CONNECTION AT MH 9 ACTIVE |
| 130.4 | VC | — |
| 130.4 | AMH | 18 0100 |
| 106.1 | RFJ | — |
| 0 | AMH | 18 0101 |
| 86.1 | TFC | — |
| 126.5 | DAGS | — |
Properties (5)
- additional_info
- SC303718
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-06T00:30:00-07:00
- sewer_category
- Gravity
