Wastewater/Activity/PacpInspection/1.0Oct 14, 2016, 10:40 AM
16 0030_A 0400 _10142016_034126.mp4
- Date
- 10/14/2016
- W/O
- 596886
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00640
- PipeID
- P20086
- Time
- 3:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3784
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 3
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_596886_TV16112_OCT2016
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0030
- Downstream MH
- A 0400
- Dir. of Survey
- Downstream
- Length Surveyed
- 59.2 ft.
- Total Length
- 59.2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

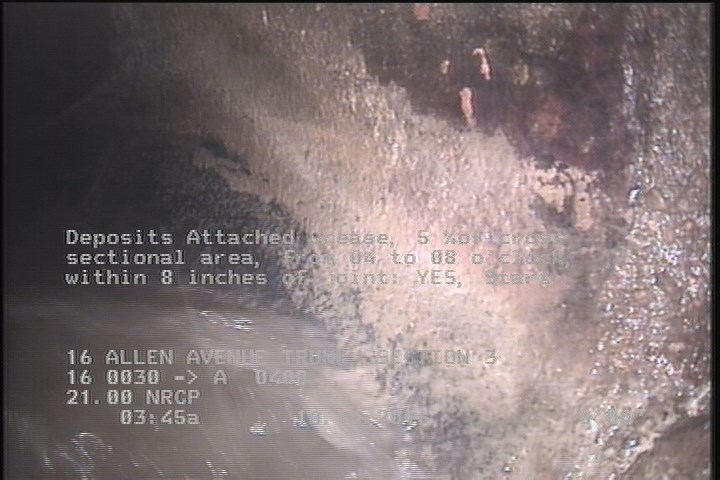

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

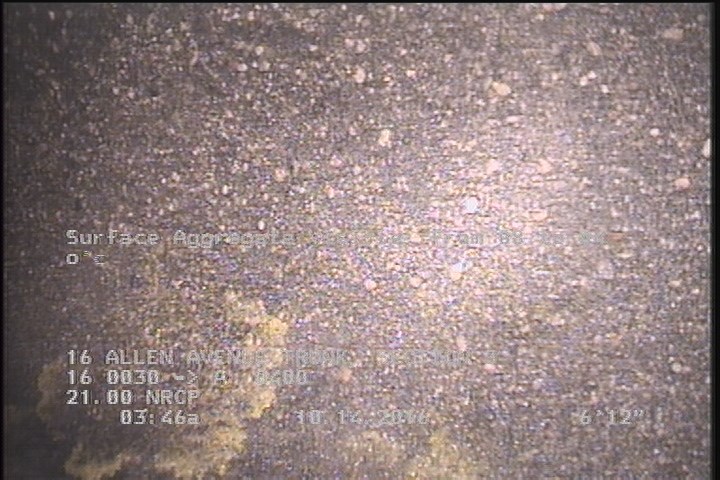

7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

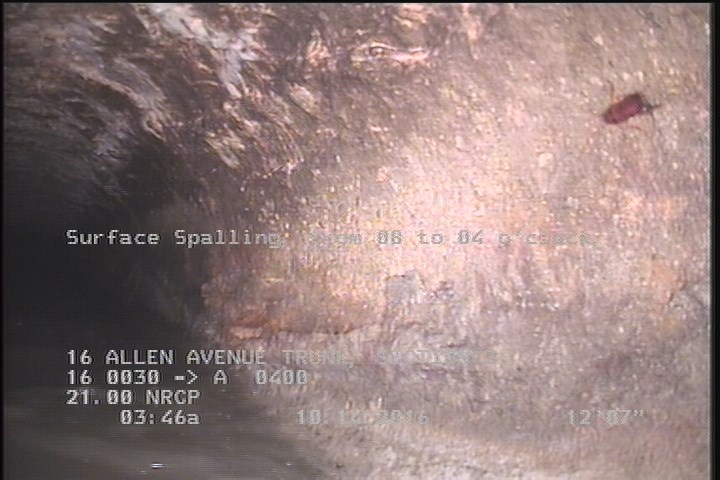

12.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 12.5 | SSS | — |
| 59.2 | AMH | A 0400 |
| 0 | MWL | — |
| 59.2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 16 0030 |
| 59.2 | SAV | — |
| 7 | SAV | — |
| 59.2 | SSS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC306321
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-10-14T03:40:19-07:00
- sewer_category
- Gravity
