Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 07:45 AM

  • 29 0534_29 0533 _11152016_234553.mp4

Date
11/15/2016
W/O
596855
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00630
PipeID
P24593
Time
11:45 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4013
Sewer Name
29 CERRITOS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_596855_TV29018_OCT2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
29 0534
Downstream MH
29 0533
Dir. of Survey
Downstream
Length Surveyed
313.5 ft.
Total Length
313.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 29 0534 to 29 0533
MH: 29 0534MH: 29 0533downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 05340 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 5 %of cross sectional area86.7 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"89 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"171.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"174 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"219.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"222.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"235.6 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES282 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"284.5 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"298.1 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES313.5 ft. AMH - Downstream Manhole, Survey Ends - 29 0533313.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

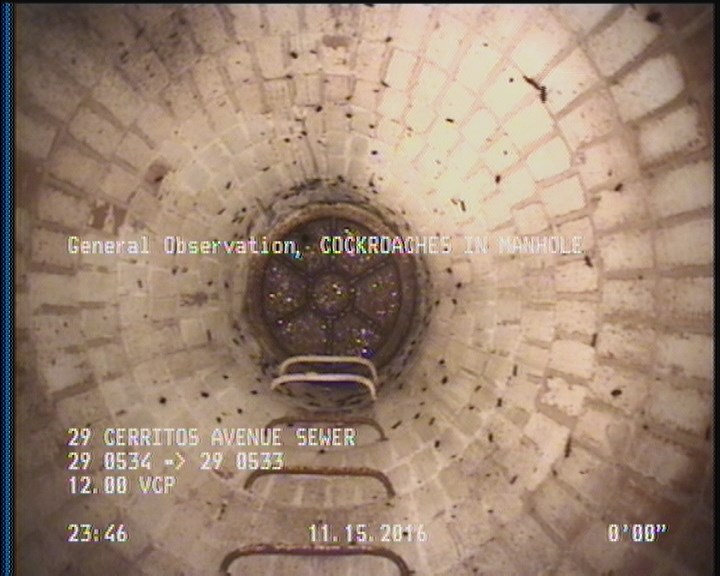

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

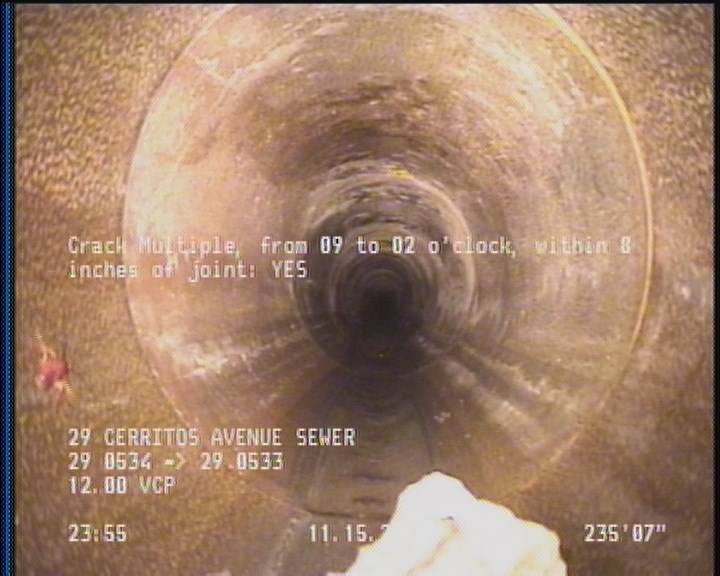

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    235.6 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

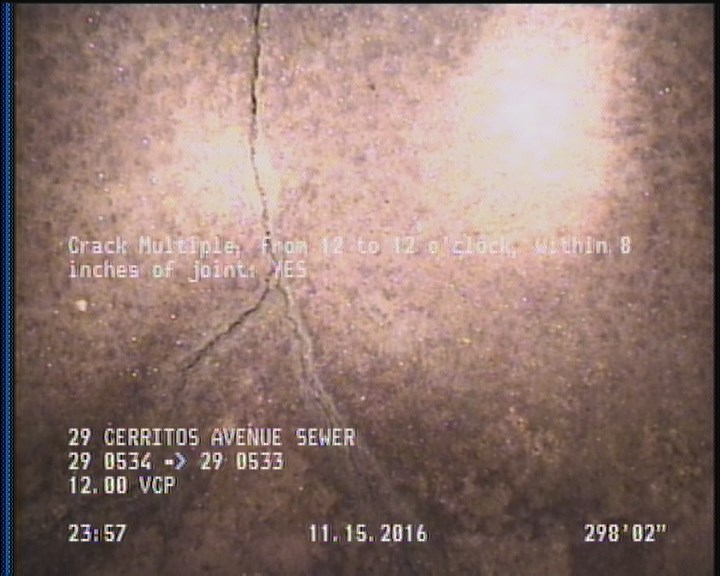

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    298.1 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

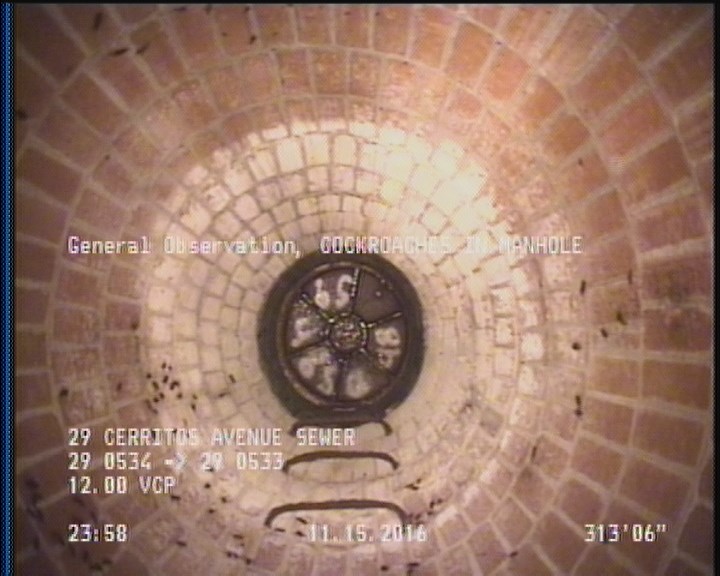

  • General Observation - COCKROACHES IN MANHOLE

    313.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P24593Work order 596855

Observations (16)

DistanceCodeObservation
86.7TFA—
313.5AMH29 0533
222.1TF—
174TFC—
0AMH29 0534
0MWM—
89TFC—
0MGOCOCKROACHES IN MANHOLE
298.1CM—
284.5TFA—
171.1TFA—
219.4TFA—
282TFC—
235.6CM—
0MWL—
313.5MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC306405
custom_field_two
4
customer
LACSD
datetime
2016-11-15T23:45:36-08:00
sewer_category
Gravity
