Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2017, 07:48 AM

  • 29 0191_29 0190 _02212017_235358.mp4

Date
02/21/2017
W/O
619130
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01025
PipeID
P24088
Time
11:48 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4248
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_619130_TV29101_FEB2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0190
Downstream MH
29 0191
Dir. of Survey
Upstream
Length Surveyed
287.3 ft.
Total Length
287.3 ft.
Structural Index
3
Structural Quick
3I11
Structural Rating
145
O&M Index
2
O&M Quick
2J00
O&M Rating
114
Overall Index
2
Overall Quick
—
Overall Rating
259
Pipe schematic from manhole 29 0190 to 29 0191
MH: 29 0190MH: 29 0191upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01912.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish2.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish50 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"53.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"77.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"102.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"153.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"200 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"200.1 ft. JOM - Joint Offset Medium203.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"214.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"242.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start256.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"285.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start287.3 ft. MWL - Water Level, 5 %of cross sectional area287.3 ft. MWM - Water Mark, 25 %of cross sectional area287.3 ft. AMH - Downstream Manhole, Survey Begins - 29 0190

Observation photos (3)

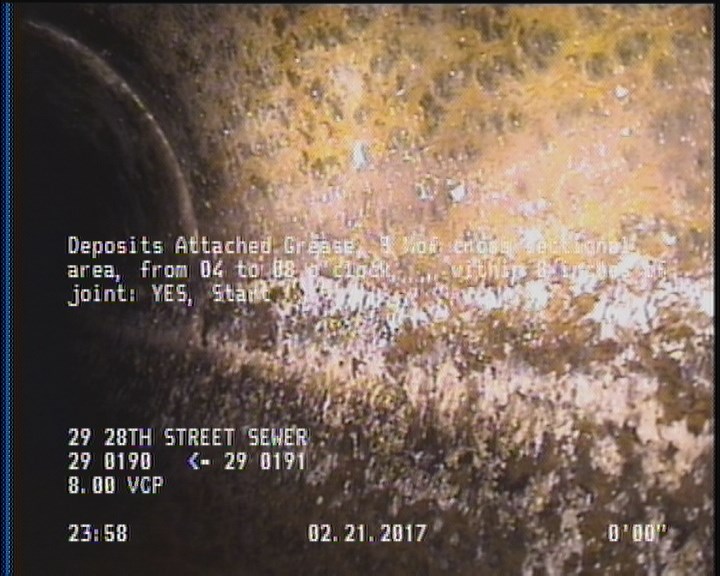

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

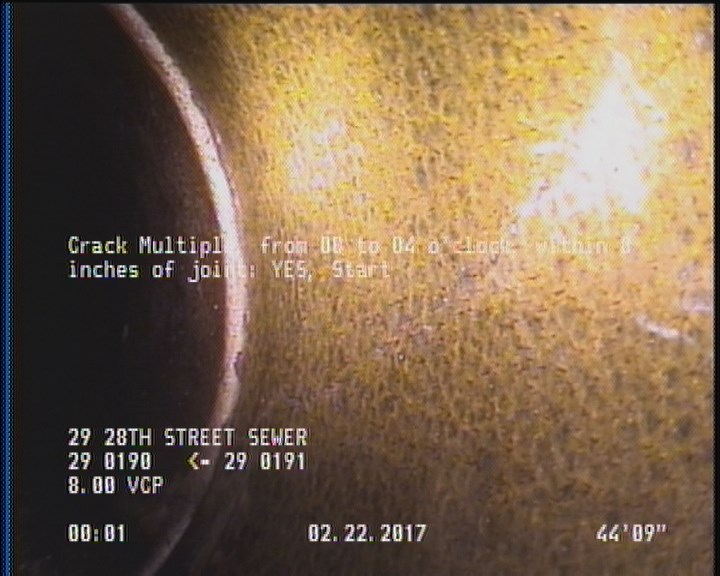

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    44.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

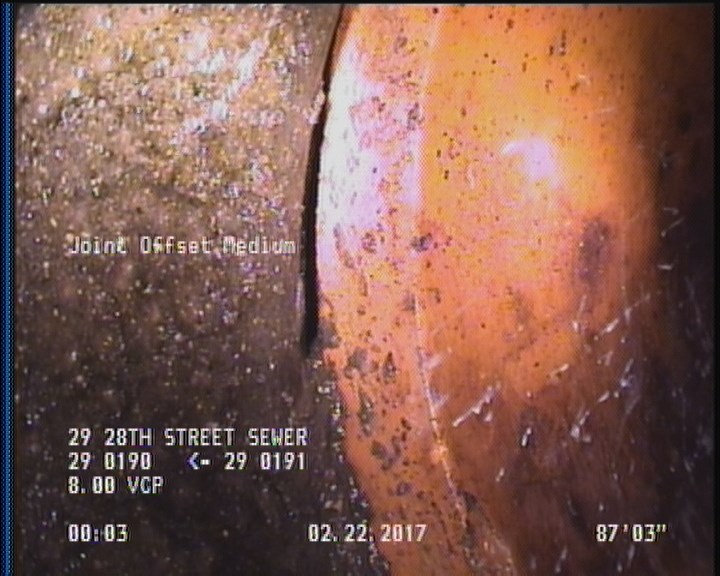

  • Joint Offset Medium

    87.2 ft. - Joint Offset Medium

All inspections of P24088Work order 619130

Observations (20)

DistanceCodeObservation
287.3AMH29 0191
44.8CM—
237.3TFC—
87.3TF—
0MWL—
234.2TFA—
83.7TFC—
184.9TFA—
0MWM—
2DAGS—
209.8TFC—
0AMH29 0190
187.6TFC—
133.7TF—
285DAGS—
72.8TF—
135.9TFA—
285CM—
87.2JOM—
31TFC—

Properties (5)

additional_info
SC306951
custom_field_two
2
customer
LACSD
datetime
2017-02-21T23:48:34-08:00
sewer_category
Gravity
