Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 20, 2017, 11:15 AM

  • 01 0444_01 0443_20032017_041612.mpg

Date
03/20/2017
W/O
625686
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00208
PipeID
P00926
Time
4:15 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4385
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_625686_TV01030_MAR2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0443
Downstream MH
01 0444
Dir. of Survey
Upstream
Length Surveyed
364.3 ft.
Total Length
364.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0443 to 01 0444
MH: 01 0443MH: 01 0444upstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK CAPPED0 ft. AMH - Upstream Manhole, Survey Ends - 01 044496.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"99.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"146.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"151 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"179.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"198.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"212.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"271.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"306.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"316 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"331.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"357.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"361.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES362.2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start364.3 ft. MWL - Water Level, 10 %of cross sectional area364.3 ft. MWM - Water Mark, 25 %of cross sectional area364.3 ft. AMH - Downstream Manhole, Survey Begins - 01 0443

Observation photos (3)

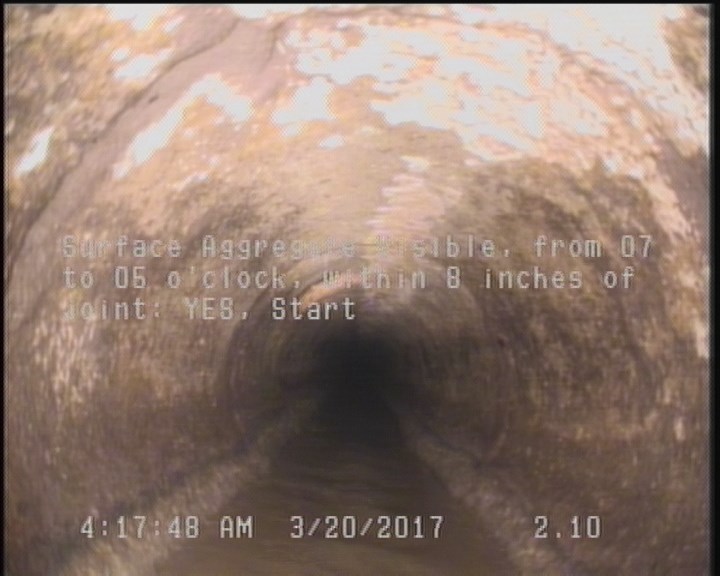

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

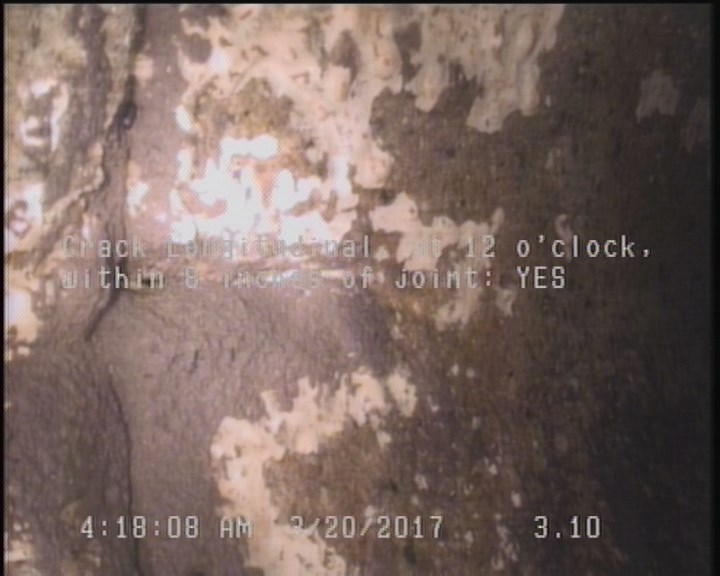

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

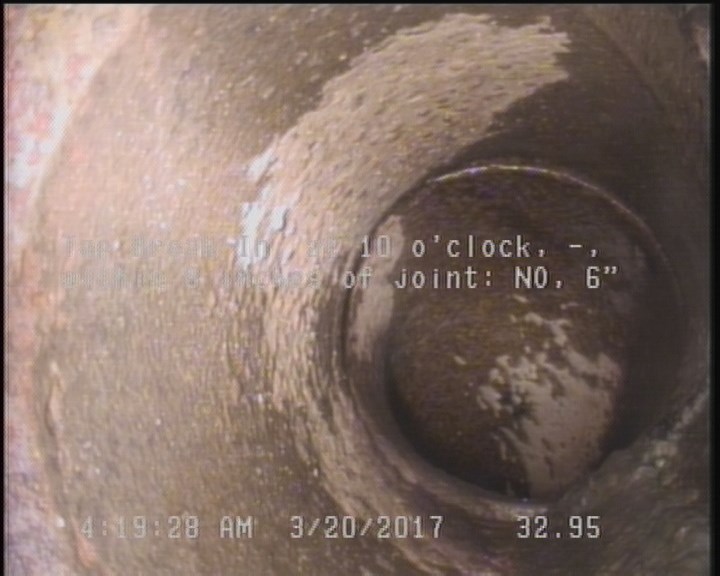

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    33 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P00926Work order 625686

Observations (23)

DistanceCodeObservation
184.8TFA—
213.3TFC—
3.1CL—
130.6TF—
165.5TF—
265.2TFC—
151.9TF—
179.5TFC—
0MWL—
364.3MGOCONNECTION AT MH 9 O'CLOCK
57.4TF—
0MWM—
48.3TF—
6.8TFC—
0AMH01 0443
218.2TFC—
364.3SAV—
364.3MGOCONNECTION AT MH 12 O'CLOCK CAPPED
93.1TF—
364.3AMH01 0444
33TB—
2.1SAV—
267.8TF—

Properties (5)

additional_info
SC306894
custom_field_two
3
customer
LACSD
datetime
2017-03-20T04:15:53-07:00
sewer_category
Gravity
