Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:37 AM
01 0541_01 0540_031017_031248.mp4
- Date
- 02/17/2017
- W/O
- 624605
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00206
- PipeID
- P01029
- Time
- 4:37 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4319
- Sewer Name
- 01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_624605_TV01232_MAR2017
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0541
- Downstream MH
- 01 0540
- Dir. of Survey
- Downstream
- Length Surveyed
- 318.2 ft.
- Total Length
- 318.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 189
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 126
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 315
Observation photos (2)

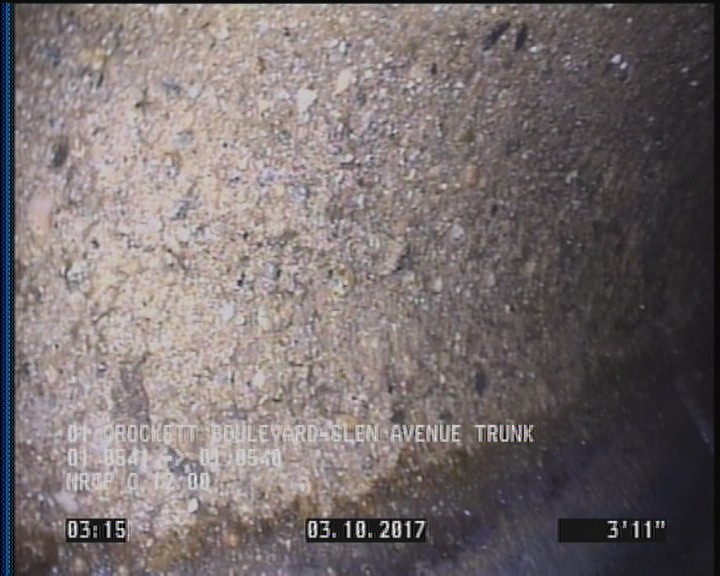

3.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

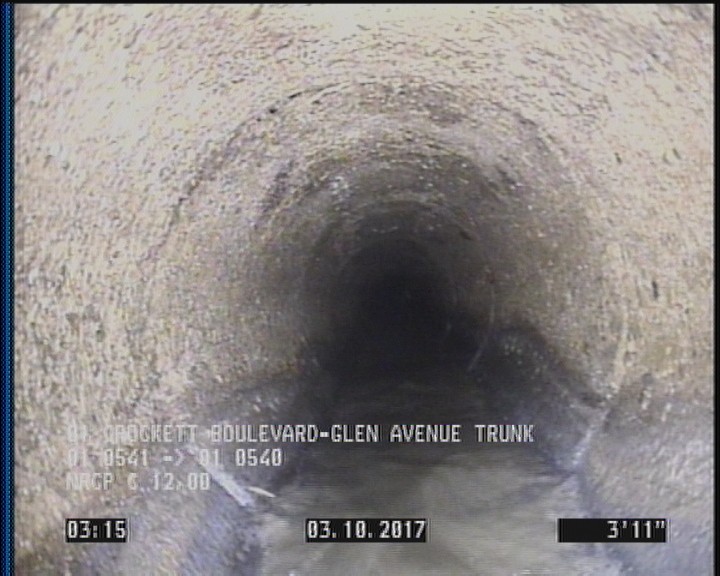

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 269.9 | TF | — |
| 318.2 | DAGS | — |
| 165.9 | TF | — |
| 312.4 | TF | — |
| 29 | TFA | — |
| 119.8 | TF | — |
| 0 | MWL | — |
| 318.2 | AMH | 01 0540 |
| 3.9 | SAV | — |
| 300.1 | TF | — |
| 0 | MWM | — |
| 69.6 | TF | — |
| 318.2 | MGO | ABANDONED CONNECTION AT 9 O CLOCK |
| 249.8 | TF | — |
| 188.7 | TF | — |
| 318.2 | SAV | — |
| 3.9 | DAGS | — |
| 72.1 | TF | — |
| 0 | AMH | 01 0541 |
Properties (5)
- additional_info
- SC318732
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-17T16:37:24-08:00
- sewer_category
- Gravity
