Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0387_01 0386_030817_032034.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00866
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4315
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0387
Downstream MH
01 0386
Dir. of Survey
Downstream
Length Surveyed
238.2 ft.
Total Length
238.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
94
Overall Index
2
Overall Quick
—
Overall Rating
94
Pipe schematic from manhole 01 0387 to 01 0386
MH: 01 0387MH: 01 0386downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 03870 ft. MWM - Water Mark, 20 %of cross sectional area3.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start63.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"86.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"134.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"160.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"185.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"213.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"238.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish238.2 ft. MGO - General Observation - CONNECTION AT 3 O CLOCK238.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0386

Observation photos (1)

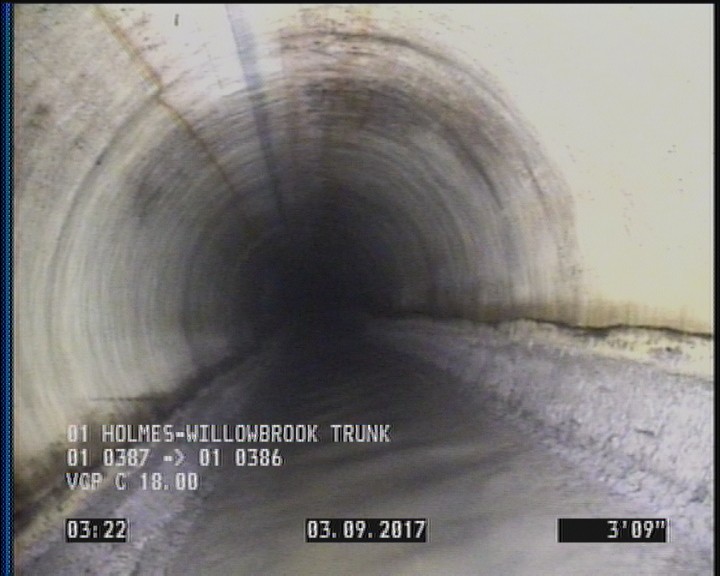

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    3.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

All inspections of P00866Work order 624309

Observations (13)

DistanceCodeObservation
238.2DAGS—
0MWL—
63.1TF—
134.9TF—
238.2MGOCONNECTION AT 3 O CLOCK
238.2AMH01 0386
213.9TFC—
86.8TF—
185.5TFC—
3.8DAGS—
0AMH01 0387
160.8TF—
0MWM—

Properties (6)

additional_info
SC318730
custom_field_two
3
customer
LACSD
datetime
2017-02-17T16:39:23-08:00
sewer_category
Gravity
year_laid
35628
