Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:40 AM
01 0459_01 0458_010102_004344.mp4
- Date
- 02/17/2017
- W/O
- 624309
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00208
- PipeID
- P00941
- Time
- 4:40 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4311
- Sewer Name
- 01 HOLMES-WILLOWBROOK TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_624309_TV01032_MAR2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0459
- Downstream MH
- 01 0458
- Dir. of Survey
- Downstream
- Length Surveyed
- 278.4 ft.
- Total Length
- 278.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312J
- O&M Rating
- 113
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 113
Observation photos (2)

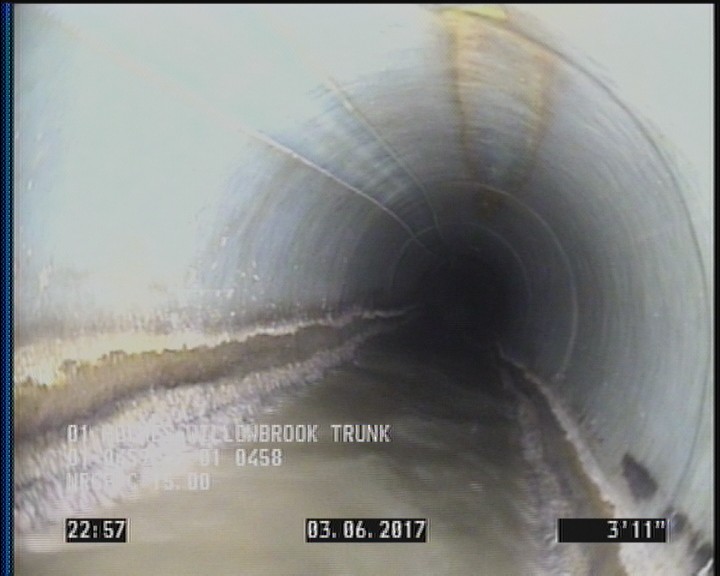

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

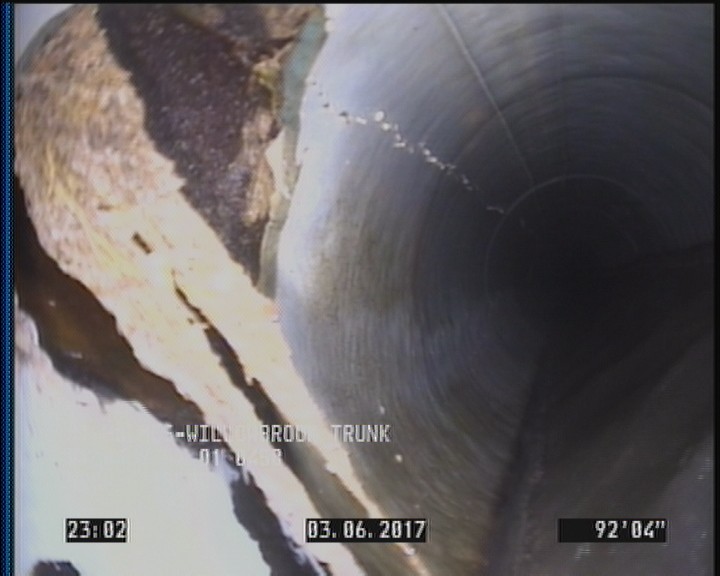

92.3 ft. - Roots Medium Lateral, from 07 to 09 o'clock, 10 %, within 8 inches of joint: NO
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 278.4 | AMH | 01 0458 |
| 92.3 | TF | — |
| 0 | MWM | — |
| 16.5 | TF | — |
| 278.4 | DAGS | — |
| 278.4 | MGO | CONNECTION AT 9 O CLOCK |
| 73 | TF | — |
| 120.9 | TF | — |
| 0 | AMH | 01 0459 |
| 0 | MWL | — |
| 203.3 | TF | — |
| 39.9 | TF | — |
| 278.4 | MGO | CONNECTION AT 3 O CLOCK |
| 92.3 | RML | — |
| 68.8 | TF | — |
| 3.9 | DAGS | — |
| 205.8 | TF | — |
| 197.7 | TF | — |
| 143.8 | TF | — |
Properties (6)
- additional_info
- SC318728
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-17T16:40:44-08:00
- sewer_category
- Gravity
- year_laid
- 37179
