Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 17, 2017, 11:45 AM

  • 01 0406_01 0405_010102_040119.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00885
Time
3:45 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4311
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0406
Downstream MH
01 0405
Dir. of Survey
Downstream
Length Surveyed
263.2 ft.
Total Length
263.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
106
Overall Index
2
Overall Quick
—
Overall Rating
106
Pipe schematic from manhole 01 0406 to 01 0405
MH: 01 0406MH: 01 0405downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 04062.3 ft. DAR - Deposits Attached Ragging, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES2.3 ft. MGO - General Observation - PIPE LINED2.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start92.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"148.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"199.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"258.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"263.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0405263.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (1)

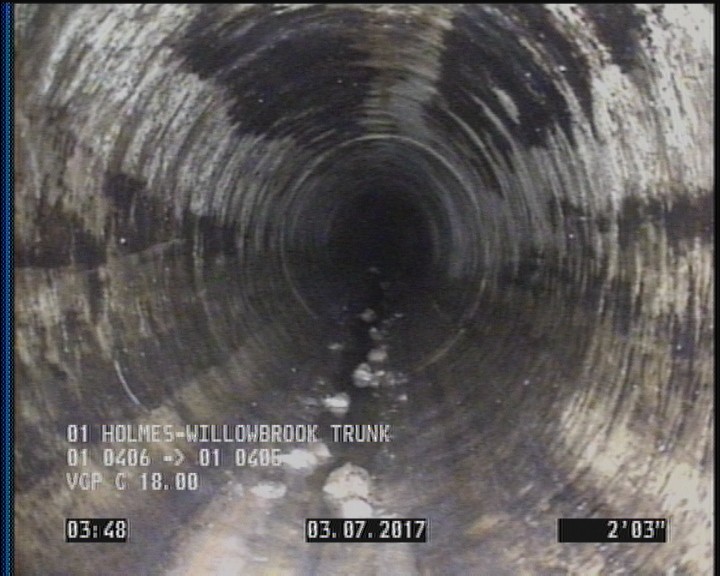

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00885Work order 624309

Observations (12)

DistanceCodeObservation
258.8TF—
0MWL—
2.3DAR—
199.3TFA—
0MWM—
263.2AMH01 0405
2.3MGOPIPE LINED
263.2DAGS—
92.2TF—
0AMH01 0406
148.2TF—
2.3DAGS—

Properties (6)

additional_info
SC318728
custom_field_two
4
customer
LACSD
datetime
2017-02-17T03:45:41-08:00
sewer_category
Gravity
year_laid
35628
