Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:40 AM

  • 01 0411A_01 0411_010102_014835.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00891
Time
4:40 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4312
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0411
Downstream MH
01 0411A
Dir. of Survey
Upstream
Length Surveyed
160.8 ft.
Total Length
160.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
64
Pipe schematic from manhole 01 0411 to 01 0411A
MH: 01 0411MH: 01 0411Aupstream0 ft. MSA - Survey Abandoned - DEBRIS0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish70.8 ft. DAR - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES92.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"142 ft. MGO - General Observation - PIPE LINED142.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"156.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start160.8 ft. MWM - Water Mark, 20 %of cross sectional area160.8 ft. MWL - Water Level, 15 %of cross sectional area160.8 ft. AMH - Downstream Manhole, Survey Begins - 01 0411

Observation photos (1)

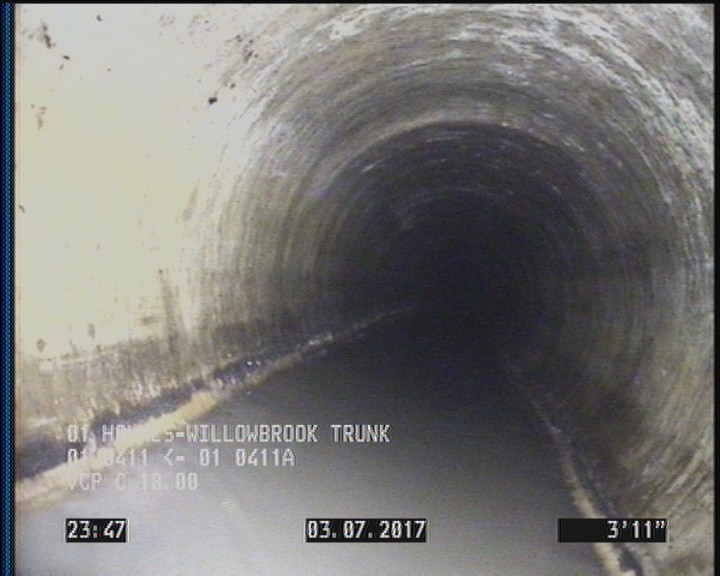

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00891Work order 624309

Observations (10)

DistanceCodeObservation
3.9DAGS—
18.8MGOPIPE LINED
0MWM—
0MWL—
18.6TF—
160.8MSADEBRIS
90DAR—
160.8DAGS—
0AMH01 0411
68.4TF—

Properties (6)

additional_info
SC318729
custom_field_two
5
customer
LACSD
datetime
2017-02-17T16:40:05-08:00
sewer_category
Gravity
year_laid
35628
