Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0401_01 0400_030817_031725.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00880
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4312
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0401
Downstream MH
01 0400
Dir. of Survey
Downstream
Length Surveyed
359.3 ft.
Total Length
359.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
142
Overall Index
2
Overall Quick
—
Overall Rating
142
Pipe schematic from manhole 01 0401 to 01 0400
MH: 01 0401MH: 01 0400downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 04010 ft. MWM - Water Mark, 15 %of cross sectional area3.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start84 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"84 ft. MMC - Material Change, Asbestos cement - DATA STATE VCP129.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"188.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"248 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"314.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"359.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0400359.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish359.3 ft. MGO - General Observation - CONNECTION AT 3 O CLOCK

Observation photos (1)

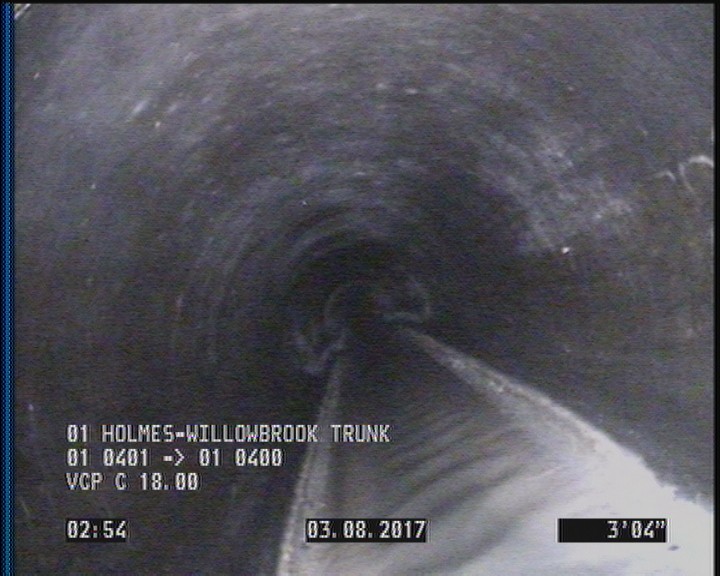

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00880Work order 624309

Observations (13)

DistanceCodeObservation
84TFC—
84MMCDATA STATE VCP
188.2TF—
248TF—
359.3AMH01 0400
0MWL—
3.3DAGS—
0AMH01 0401
359.3DAGS—
129.1TF—
359.3MGOCONNECTION AT 3 O CLOCK
0MWM—
314.4TF—

Properties (6)

additional_info
SC318729
custom_field_two
4
customer
LACSD
datetime
2017-02-17T16:39:26-08:00
sewer_category
Gravity
year_laid
27856
