Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0402_01 0401_030817_025238.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00881
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4312
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0402
Downstream MH
01 0401
Dir. of Survey
Downstream
Length Surveyed
369.5 ft.
Total Length
369.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
146
Overall Index
2
Overall Quick
—
Overall Rating
146
Pipe schematic from manhole 01 0402 to 01 0401
MH: 01 0402MH: 01 0401downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 04023.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start80.4 ft. MMC - Material Change, Asbestos cement80.4 ft. MGO - General Observation - DATA STATES VCP ATUALLY ABS80.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"87.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"150 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"218.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"285.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"290.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"369.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish369.5 ft. MGO - General Observation - CONNECTION AT 3 O CLOCK369.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0401

Observation photos (1)

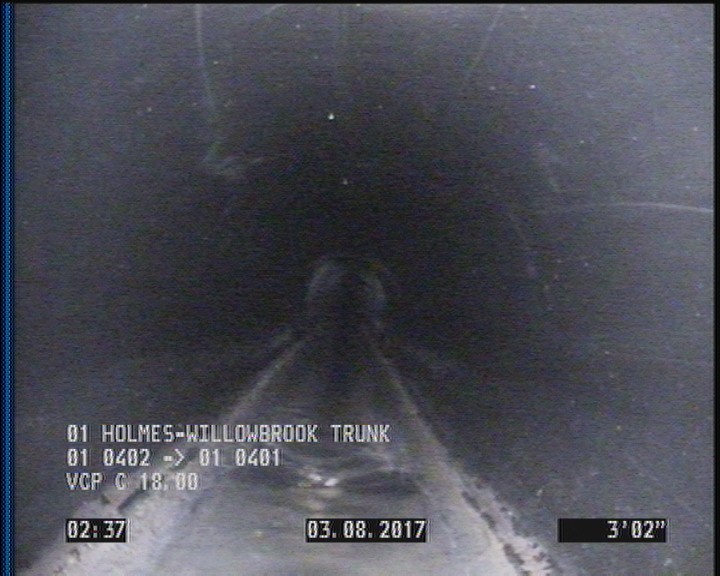

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00881Work order 624309

Observations (15)

DistanceCodeObservation
290.2TF—
80.4MMC—
218.8TF—
369.5DAGS—
285.6TF—
0MWL—
150TF—
369.5MGOCONNECTION AT 3 O CLOCK
369.5AMH01 0401
87.8TF—
80.4MGODATA STATES VCP ATUALLY ABS
0MWM—
3.2DAGS—
0AMH01 0402
80.4TF—

Properties (6)

additional_info
SC318729
custom_field_two
4
customer
LACSD
datetime
2017-02-17T16:39:26-08:00
sewer_category
Gravity
year_laid
27856
