Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0393_01 0392_030817_103411.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00872
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4315
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0393
Downstream MH
01 0392
Dir. of Survey
Downstream
Length Surveyed
109.5 ft.
Total Length
109.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2C00
O&M Rating
42
Overall Index
2
Overall Quick
—
Overall Rating
42
Pipe schematic from manhole 01 0393 to 01 0392
MH: 01 0393MH: 01 0392downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 03930 ft. MWL - Water Level, 15 %of cross sectional area4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start20 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"24.7 ft. MGO - General Observation - PIPE LINED42.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"68.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"76.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"109.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish109.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0392

Observation photos (1)

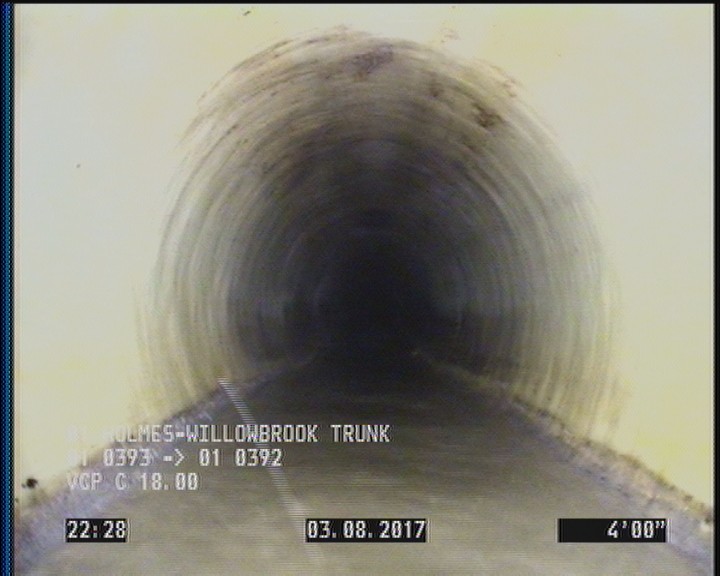

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00872Work order 624309

Observations (11)

DistanceCodeObservation
109.5DAGS—
4DAGS—
0MWM—
20TFC—
0AMH01 0393
0MWL—
68.3TF—
76.1TF—
42.6TF—
24.7MGOPIPE LINED
109.5AMH01 0392

Properties (6)

additional_info
SC318730
custom_field_two
4
customer
LACSD
datetime
2017-02-17T16:39:24-08:00
sewer_category
Gravity
year_laid
35628
