Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 8, 2017, 12:39 PM

  • 01 0400_01 0399_07032017_163926.mp4

Date
03/08/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00879
Time
4:39 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4312
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0399
Downstream MH
01 0400
Dir. of Survey
Upstream
Length Surveyed
111.3 ft.
Total Length
111.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 01 0399 to 01 0400
MH: 01 0399MH: 01 0400upstream0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish67.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"106.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start106.8 ft. MMC - Material Change, Asbestos cement - DATA STATES VCP111.3 ft. MWM - Water Mark, 15 %of cross sectional area111.3 ft. MGO - Reversal Inspection111.3 ft. AMH - Downstream Manhole, Survey Begins - 01 0399111.3 ft. MWL - Water Level, 10 %of cross sectional area111.3 ft. AMH - Downstream Manhole, Survey Begins - 01 0391

Observation photos (1)

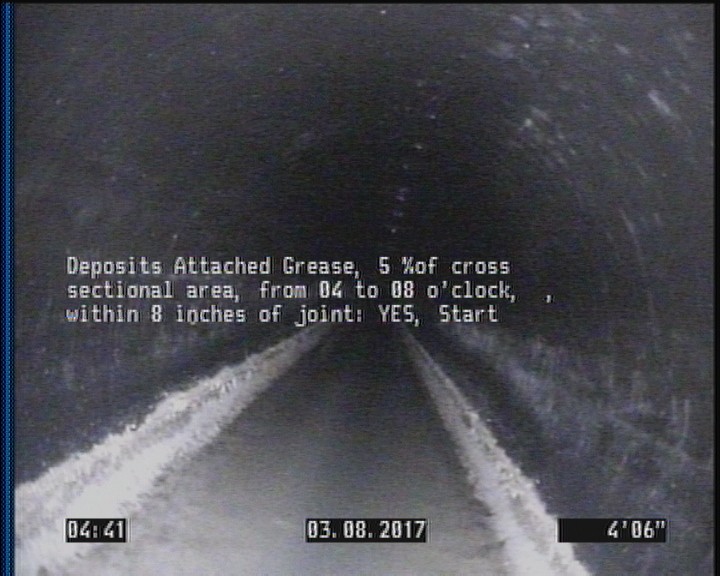

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00879Work order 624309

Observations (10)

DistanceCodeObservation
0MWM—
0MGO—
4.5DAGS—
0AMH01 0399
0MWL—
111.3MSAREVERSAL COMPLETE
43.5TF—
0AMH01 0391
111.3DAGS—
4.5MMCDATA STATES VCP

Properties (6)

additional_info
SC318729
custom_field_two
4
customer
LACSD
datetime
2017-03-08T04:39:35-08:00
sewer_category
Gravity
year_laid
27856
