Wastewater/Activity/PacpInspection/1.0Feb 10, 2017, 10:34 AM
B 0916_B 0915 _02102017_035737.mpg
- Date
- 02/10/2017
- W/O
- 618893
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00922
- PipeID
- P20265
- Time
- 2:34 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4263
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_618893_TV08052_FEB2017
- Material
- RC-PVC T-LOCK LINED
- Shape
- Circular
- Height
- 0 in.
- Width
- 0 in.
- Upstream MH
- B 0916
- Downstream MH
- B 0915
- Dir. of Survey
- Downstream
- Length Surveyed
- 271.8 ft.
- Total Length
- 271.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412J
- O&M Rating
- 111
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 111
Observation photos (3)

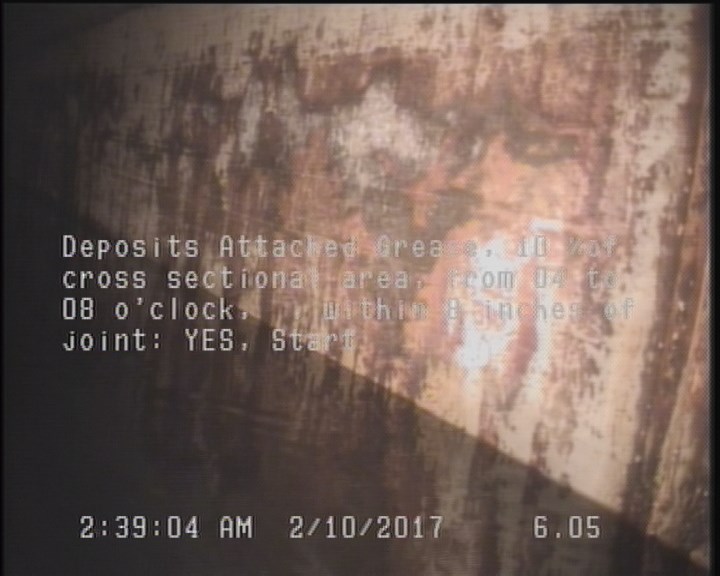

6.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

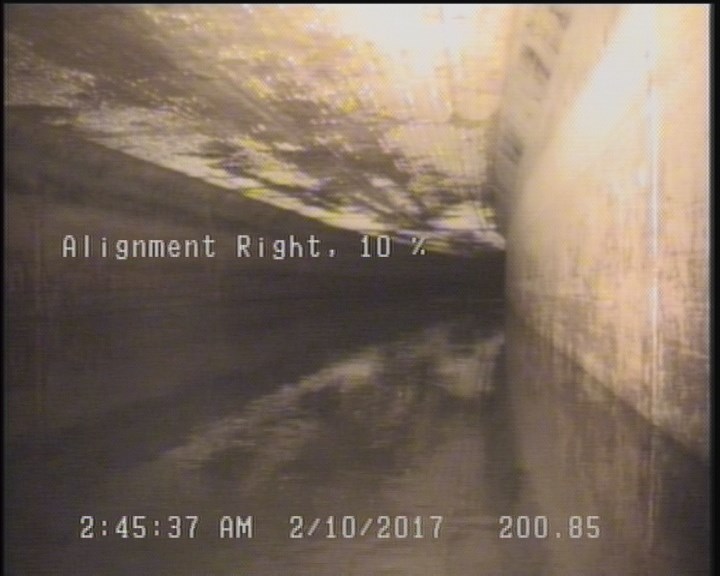

200.9 ft. - Alignment Right, 10 %

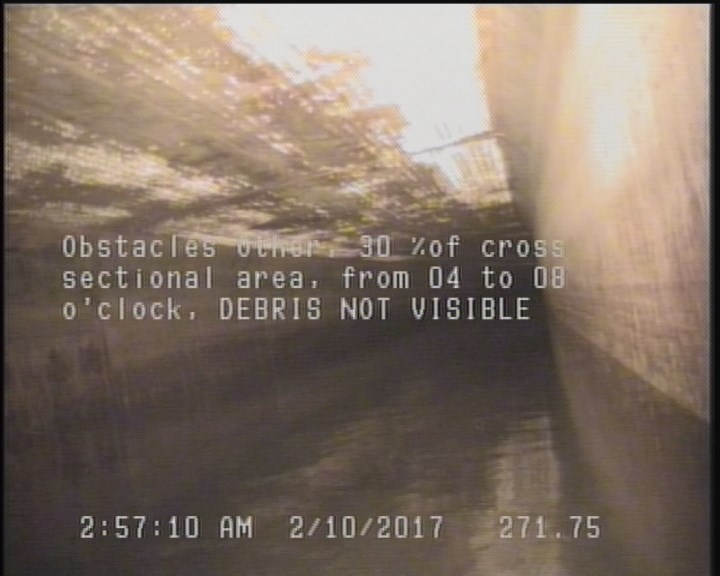

271.8 ft. - Obstacles Other, 30 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 271.8 | MSA | SEVERE DEBRIS 30% |
| 271.8 | DAGS | — |
| 6.1 | DAGS | — |
| 0 | MWM | — |
| 271.8 | OBZ | DEBRIS NOT VISIBLE |
| 200.9 | LR | — |
| 0 | AMH | B 0916 |
Properties (6)
- additional_info
- SC306805
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-02-10T02:34:33-08:00
- sewer_category
- Gravity
- year_laid
- 37161
