Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2017, 12:17 PM

  • B 0915_B 0914_02102017_052123.mpg

Date
02/10/2017
W/O
618893
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00922
PipeID
P20264
Time
4:17 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4263
Sewer Name
B JOINT OUTFALL B - UNIT 1A REPLACEMENT
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
14
Purpose
V
Project
WO_618893_TV08052_FEB2017
Material
RC-PVC T-LOCK LINED
Shape
Circular
Height
0 in.
Upstream MH
B 0914
Downstream MH
B 0915
Dir. of Survey
Upstream
Length Surveyed
2.2 ft.
Total Length
2.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole B 0914 to B 0915
MH: B 0914MH: B 0915upstream0 ft. MSA - Survey Abandoned - SEVERE DEBRIS 30%0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES0 ft. OBZ - Obstacles Other, 30 %of cross sectional area, from 04 to 08 o'clock - DEBRIS 30% NOT VISIBLE2.2 ft. MGO - Reversal Inspection2.2 ft. MWM - Water Mark, 40 %of cross sectional area2.2 ft. MWL - Water Level, 30 %of cross sectional area2.2 ft. AMH - Downstream Manhole, Survey Begins - B 0914

Observation photos (3)

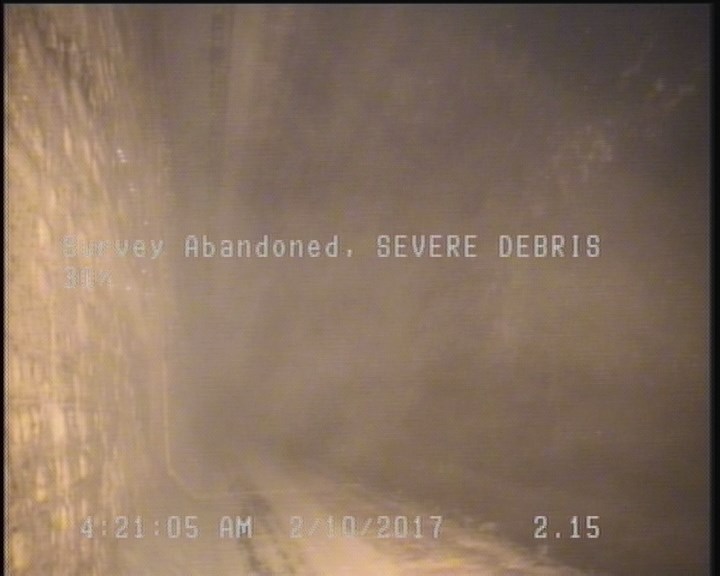

  • Survey Abandoned - SEVERE DEBRIS 30%

    2.2 ft. - Survey Abandoned - SEVERE DEBRIS 30%

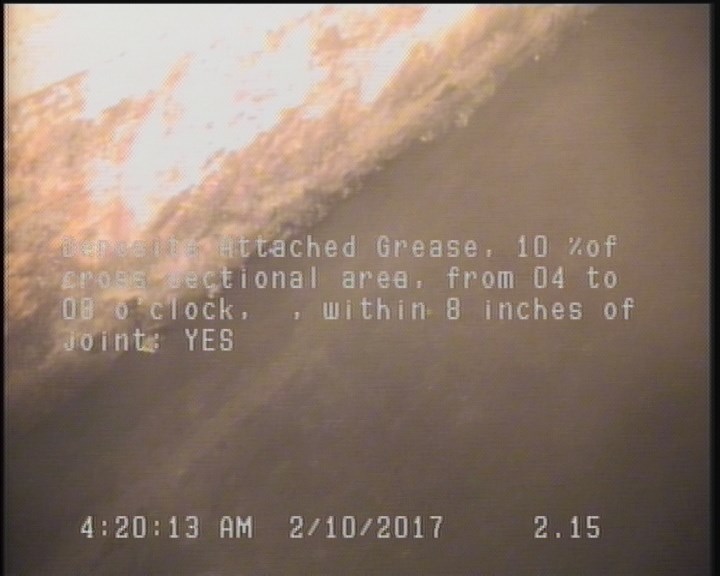

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    2.2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

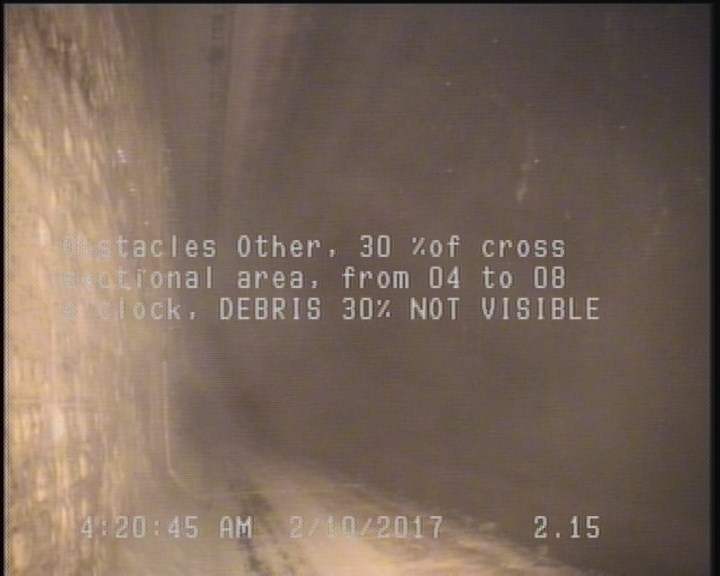

  • Obstacles Other, 30 %of cross sectional area, from 04 to 08 o'clock - DEBRIS 30% NOT VISIBLE

    2.2 ft. - Obstacles Other, 30 %of cross sectional area, from 04 to 08 o'clock - DEBRIS 30% NOT VISIBLE

All inspections of P20264Work order 618893

Observations (7)

DistanceCodeObservation
0MGO—
2.2MSASEVERE DEBRIS 30%
0MWM—
2.2DAGS—
2.2OBZDEBRIS 30% NOT VISIBLE
0MWL—
0AMHB 0914

Properties (5)

additional_info
SC306805
custom_field_two
5
customer
LACSD
datetime
2017-02-10T04:17:22-08:00
sewer_category
SS
