Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2017, 10:08 AM

  • A 0170_A 0169 _07022017_022114.mp4

Date
02/07/2017
W/O
619126
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00323
PipeID
P08107
Time
2:08 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4145
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_619126_TV02346_FEB2017
Material
Reinforced Concrete Pipe
Shape
Circular
Height
78 in.
Width
78 in.
Upstream MH
A 0170
Downstream MH
A 0169
Dir. of Survey
Downstream
Length Surveyed
841.8 ft.
Total Length
841.8 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole A 0170 to A 0169
MH: A 0170MH: A 0169downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 6 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - A 01700 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK2.1 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start94.8 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish841.8 ft. AMH - Downstream Manhole, Survey Ends - A 0169841.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

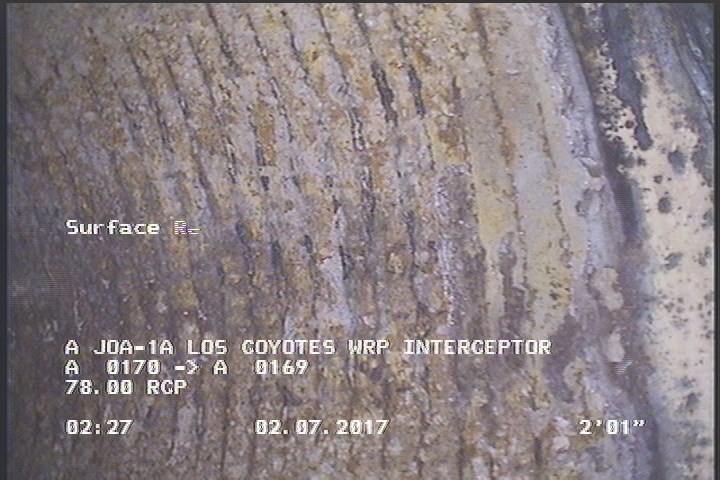

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

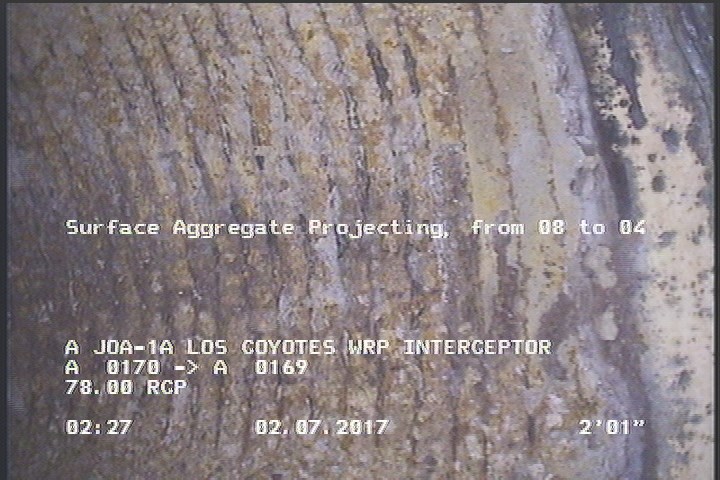

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08107Work order 619126

Observations (10)

DistanceCodeObservation
2.1SRV—
841.8AMHA 0169
0MWM—
841.8SAP—
0MWL—
2.1SAP—
0MGOLATERAL AT MH 6 O'CLOCK
0AMHA 0170
94.8SRV—
0MGOLATERAL AT MH 3 O'CLOCK

Properties (6)

additional_info
SC306851
custom_field_two
2
customer
LACSD
datetime
2017-02-07T02:08:56-08:00
sewer_category
Gravity
year_laid
28048
