Wastewater/Activity/PacpInspection/1.0Feb 6, 2017, 09:39 AM
02 0004_02 0003 _06022017_013942.mp4
- Date
- 02/06/2017
- W/O
- 618895
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00269
- PipeID
- P04714
- Time
- 1:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4143
- Sewer Name
- 02 GRIDLEY ROAD P.P. FORCE MAIN
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39A
- Purpose
- Routine Assessment
- Project
- WO_618895_TV02066_FEB2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 02 0003
- Downstream MH
- 02 0004
- Dir. of Survey
- Upstream
- Length Surveyed
- 134.5 ft.
- Total Length
- 134.5 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

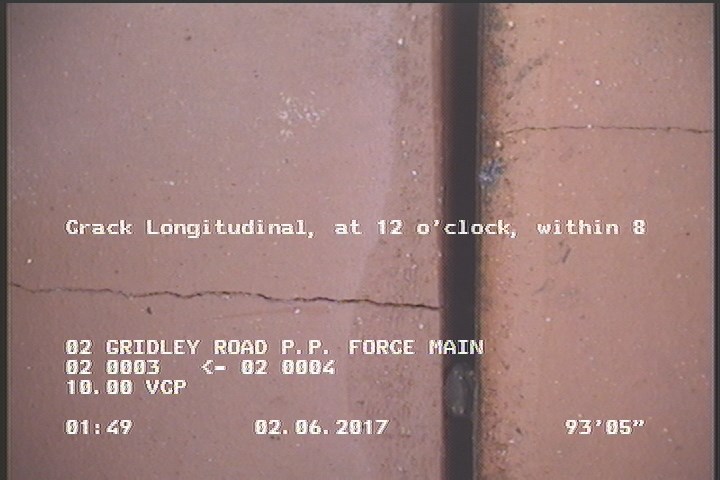

93.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

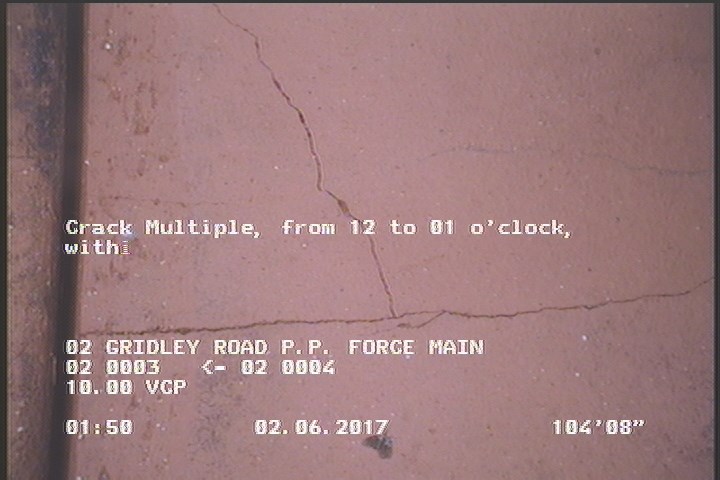

104.6 ft. - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

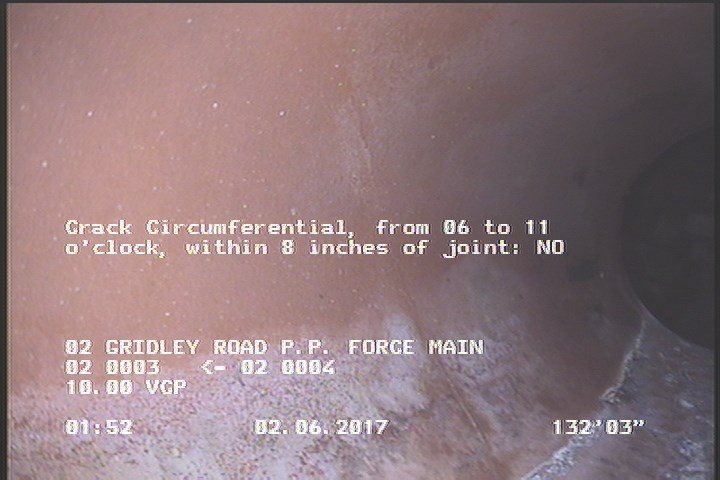

132.2 ft. - Crack Circumferential, from 06 to 11 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MGO | LATERAL AT MH 9 O'CLOCK |
| 93.4 | CL | — |
| 128.9 | CL | — |
| 0 | MWL | — |
| 104.6 | CM | — |
| 134.5 | AMH | 02 0004 |
| 0 | AMH | 02 0003 |
| 132.2 | CC | — |
Properties (5)
- additional_info
- SC306499
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-06T01:39:28-08:00
- sewer_category
- Gravity
