Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 06:54 AM
H 1358_H 1357 _01062017_231554.mpg
- Date
- 01/06/2017
- W/O
- 616852
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01187
- PipeID
- P26155
- Time
- 10:54 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4068
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- SOUTH EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT15_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1358
- Downstream MH
- H 1357
- Dir. of Survey
- Downstream
- Length Surveyed
- 596.7 ft.
- Total Length
- 596.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2W12
- O&M Rating
- 238
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 238
Observation photos (2)

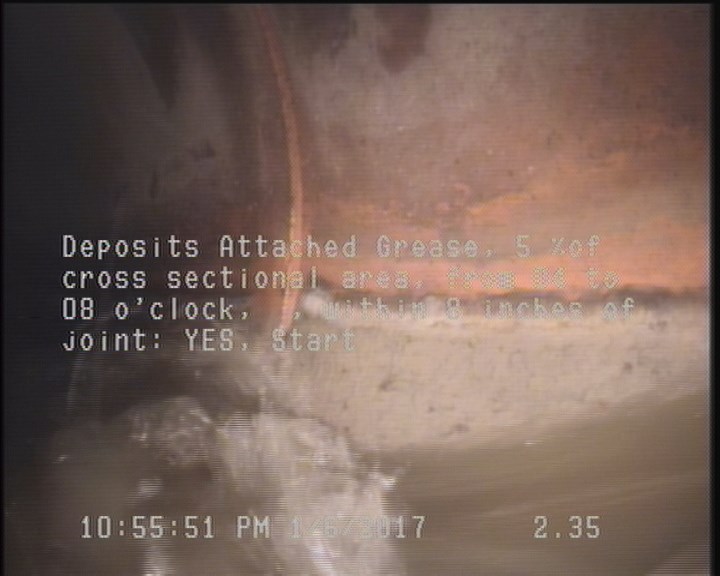

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

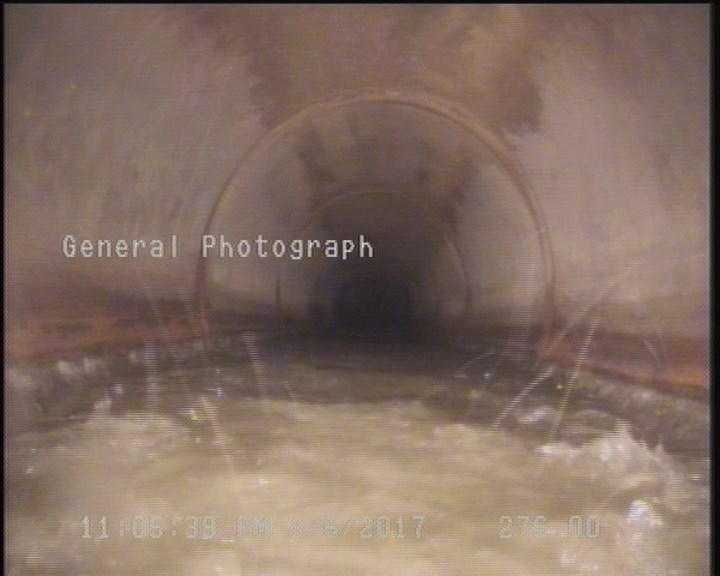

276 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 0 | AMH | H 1358 |
| 276 | MGP | — |
| 2.4 | DAGS | — |
| 596.7 | AMH | H 1357 |
| 596.7 | VC | — |
| 593 | DAGS | — |
| 2.4 | MGO | MAGNESIUM H.O. START |
| 593 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | MWL | — |
| 596.7 | MGO | CONNECTION AT MH 3 O'CLOCK MADE |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC318609
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-06T22:54:25-08:00
- sewer_category
- Gravity
- year_laid
- 40073
