Wastewater/Activity/PacpInspection/1.0Jan 6, 2017, 06:51 AM
15 1185_15 1181_01052017_230332.mpg
- Date
- 01/05/2017
- W/O
- 616852
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01185
- PipeID
- P26113
- Time
- 10:51 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4065
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTION 2 RELIEF EXTENSION
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT15_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 1185
- Downstream MH
- 15 1181
- Dir. of Survey
- Downstream
- Length Surveyed
- 93.4 ft.
- Total Length
- 93.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C11
- O&M Rating
- 37
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (1)

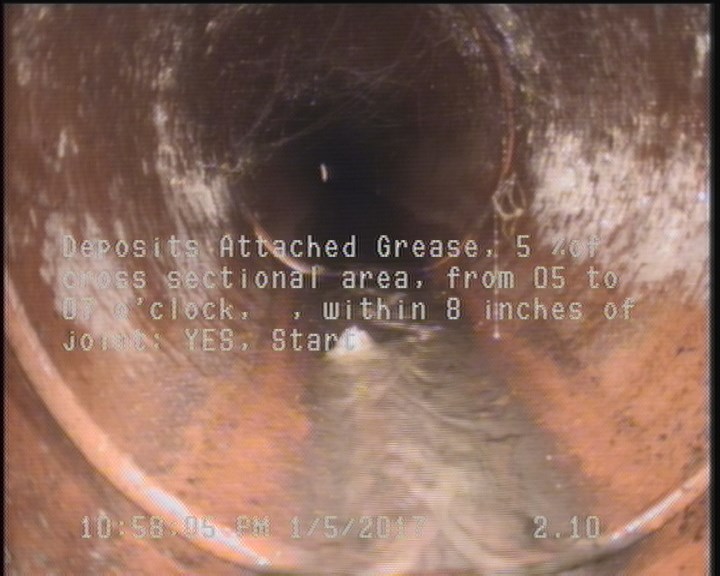

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 59.7 | VC | — |
| 91.9 | DAGS | — |
| 93.4 | AMH | 15 1181 |
| 0 | MWM | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 2.1 | DAGS | — |
| 0 | AMH | 15 1185 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 0 | MWL | — |
| 93.4 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 91.9 | MGO | MAGNEZIUM H.O. FINISH |
Properties (6)
- additional_info
- SC318606
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-05T22:51:48-08:00
- sewer_category
- Gravity
- year_laid
- 39867
