Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 6, 2017, 11:00 AM

  • H 1363_H 1362 _01062017_032306.mpg

Date
01/06/2017
W/O
616852
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z01187
PipeID
P26160
Time
3:00 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4067
Sewer Name
H JOINT OUTFALL H - UNIT 5D RELIEF
City
SOUTH EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_616852_DISTRICT15_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 1363
Downstream MH
H 1362
Dir. of Survey
Downstream
Length Surveyed
602.3 ft.
Total Length
602.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2W12
O&M Rating
242
Overall Index
2
Overall Quick
—
Overall Rating
242
Pipe schematic from manhole H 1363 to H 1362
MH: H 1363MH: H 1362downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 13630 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM H.O. START314.2 ft. MGP - General Photograph600.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish600.9 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH602.3 ft. AMH - Downstream Manhole, Survey Ends - H 1362602.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE602.3 ft. VC - Vermin Cockroach

Observation photos (2)

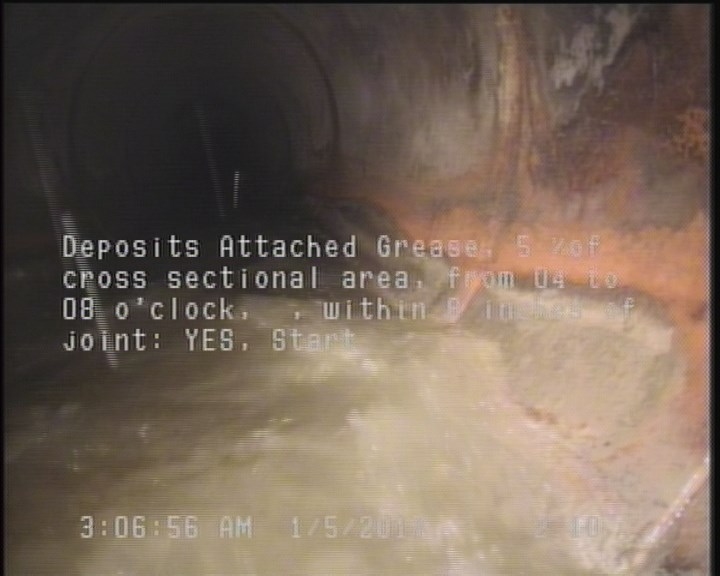

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

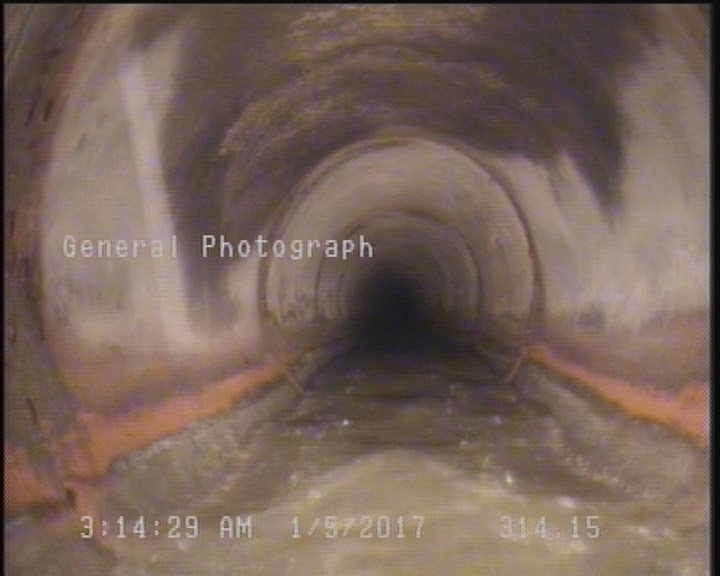

  • General Photograph

    314.2 ft. - General Photograph

All inspections of P26160Work order 616852

Observations (12)

DistanceCodeObservation
602.3AMHH 1362
602.3MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
600.9DAGS—
602.3VC—
0AMHH 1363
314.2MGP—
2.1DAGS—
0VC—
600.9MGOMAGNEZIUM H.O. FINISH
0MWM—
0MWL—
2.1MGOMAGNESIUM H.O. START

Properties (6)

additional_info
SC318608
custom_field_two
4
customer
LACSD
datetime
2017-01-06T03:00:19-08:00
sewer_category
Gravity
year_laid
40073
